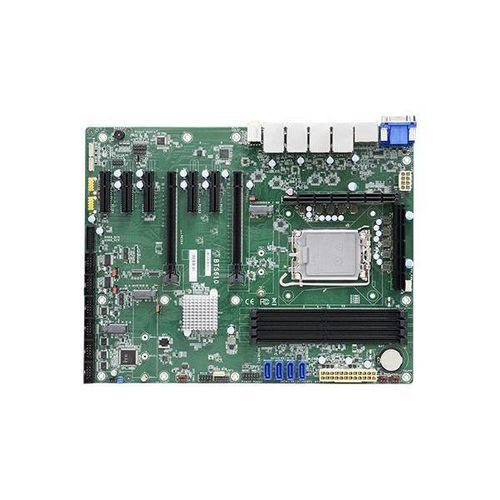

ATX motherboard BTS610 series

8th Generation Intel® Core™9th Generation Intel® Core™11th Generation Intel® Core™

The BTS610-W680/R680E/Q670E industrial motherboard is designed for high-performance applications, supporting 14th, 13th, and 12th Gen Intel® Core processors. It features four DDR5 UDIMM slots supporting up to 192GB of memory, and offers quad display outputs including VGA, 2 DP++, and HDMI, supporting 4K resolution. - Multiple expansion options include 2 PCIe x16, 5 PCIe x4, and 2 M.2 M key slots. - Rich I/O options with 4 Intel 2.5GbE ports, 6 COM ports, and multiple USB ports. - The motherboard supports a 10-year CPU lifecycle until Q1’32, based on the Intel IOTG roadmap. - M2A-OOB support is available for enhanced management capabilities. Features: - 4K2K Display - PCIe x16 - Multiple Expansion - Quad Independent Display - Rich I/O - 2.5G Ethernet Technical Specifications: - Processor: Intel® Bartlett Lake-S Hybrid LGA 1700 Socket Processors, up to 24 cores, up to 5.8 GHz - Chipset: Intel® W680/R680E - Memory: Up to 192GB DDR5 - Graphics: Intel® UHD Graphics 700 series - Display Outputs: VGA, 2 DP++, HDMI - Expansion: PCIe x16, PCIe x4, M.2 M key - Audio: Realtek ALC888S - Ethernet: Intel® I226-LM, I210-AT, I226-V - Rear I/O: USB, VGA, DP++, HDMI, Audio - Internal I/O: RS-232/422/485, USB, SATA, DIO - Watchdog Timer, TPM2.0, ATX Power - OS Support: Windows 10 IoT, Windows 11 LTSC, Linux - Environment: Operating -5 to 65°C - Dimensions: ATX Form Factor - Certifications: CE, FCC Class B, RoHS - Country of Origin: Taiwan
