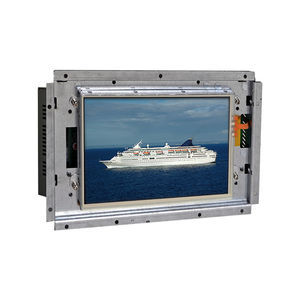

Panel PC with touch screen KIT-ADN series

multitouch screenTFT LCDPCAP capacitive touch screen

The KIT-ADN Series is an industrial open-frame panel PC family by DFI, available in 10.1" and 12.1" TFT sizes with projected capacitive multi-touch and LPDDR5 soldered memory. Designed for industrial HMI and embedded applications, the series supports fanless operation, multiple independent displays and extensive I/O for connectivity and remote management.

Key features

• Industrial open-frame panel PC with Projected Capacitive (P‑Cap) 10-point touch.
• LPDDR5 4800 MHz memory down (8GB / 16GB soldered).
• Quad independent display capability via HDMI, USB-C Alt Mode and eDP/LVDS.
• Fanless thermal design for reliable operation in industrial environments.
• Out-of-band (OOB) remote management support.
• Wide DC input range: 9~36V.

Available models (ordering information)

• KIT101P-ADN — 10.1" TFT WXGA open frame with Projected Capacitive Touch. Part Number: 750-KIT1011-000G.
• KIT121P-ADN — 12.1" TFT XGA open frame with Projected Capacitive Touch. Part Number: 750-KIT1211-000G.

Technical specifications

• Processor: Intel Alder Lake-N family and Intel PC Client Series options. Examples: Intel® N50 (2 cores, 1.0–3.4 GHz), N97 (4 cores, 2.0–2.9 GHz), N200 (4 cores, 1.0–3.2 GHz), Intel® Core™ i3-N305 (8 cores, 1.0–3.0 GHz). Also supports Intel® Embedded Series and Intel® Atom® X72xxE variants (X7211E, X7213E, X7425E).
• Memory: 8GB / 16GB LPDDR5 4800 (soldered, memory down).
• BIOS: AMI SPI 256 Mbit (UEFI boot only).
• Display & Touch Screen:
  • Touch type: Projected Capacitive (P‑Cap), 10-point.
  • Brightness: 500 cd/m².
  • Backlight lifetime: KIT101P-ADN = 50,000 hours; KIT121P-ADN = 30,000 hours.
  • Max. resolution: KIT101P-ADN = 1280 x 800; KIT121P-ADN = 1024 x 768.
  • Size/Type: KIT101P-ADN = 10.1" TFT LCD (16:10); KIT121P-ADN = 12.1" TFT LCD (4:3).
• Graphics: Intel® UHD Graphics (up to 32 EUs). 3D API support: OpenGL 4.6, DirectX 12, Vulkan 1.2 (Windows); Mesa/OpenGL 4.6/Vulkan 1.2 (Linux). Compute: OpenCL 3.0. Precision: FP32, FP16, INT8.
• Display outputs: 1 x eDP/LVDS (default), 1 x HDMI 1.4, 1 x USB-C Alt Mode (plus optional additional USB-C).
• Storage:
  • Internal: 1 x M.2 2242/2280 M key (SATA/PCIe), 1 x SATA III.
  • Optional eMMC: 32GB / 64GB.
  • External: 1 x MicroSD slot (rear I/O).
• Expansion interfaces:
  • 1 x M.2 2242/2280 M key (PCIe x1 / SATA).
  • 1 x M.2 2230 E key (USB2.0 / PCIe).
  • 1 x M.2 3042/3052 B key (USB3.0 / USB2.0 / PCIe).
• Audio: ALC888S codec. Rear I/O: 1 x 3.5 mm Line out / Mic In.
• Ethernet:
  • 2 x Intel i226 2.5GbE (TSN support).
  • 1 x Intel i210 1GbE.
• Front I/O: 3 x RS232/422/485 DB9 connectors.
• Rear I/O: 2 x 2.5GbE RJ45, 1 x GbE RJ45, 1 x COM/DIO port, 3 x USB 3.2 Type-A, 1 x USB-C 3.2, 1 x HDMI, 1 x MicroSD, 1 x 3.5 mm audio.
• Internal I/O: 2 x RS232, 1 x 40-pin LVDS/eDP (default LVDS), 1 x SATA 3.0, 1 x 5V SATA power (supports SATA HDD LED via front panel), 1 x SMBus, 1 x front panel connector.
• Watchdog Timer: System reset, programmable 1–255 seconds.
• Security: TPM 2.0 available upon request.
• Power: Wide range 9~36V DC input. Connector: DC jack or vertical 4‑pin connector. RTC battery: CR2032 coin cell.
• OS Support: Windows 11 IoT Enterprise; Linux: Ubuntu 22.04.
• Environment: Operating temperature 0 ~ 50°C (with 0.6 m/s airflow); Storage temperature -30 ~ 80°C; Relative humidity 5–90% RH (non-condensing).
• Mechanics / Dimensions & Weight:
  • KIT101P-ADN (W x H x D): 279.1 x 172.95 x 76.4 mm; weight ≈ 2.6 kg.
  • KIT121P-ADN (W x H x D): 312.9 x 226.25 x 78 mm; weight ≈ 3.5 kg.
• Standards & Certifications: CE, FCC Class A, RoHS.
• Packing list: 1 x Open Frame Panel PC; 1 x 2-pin terminal block connector; 2 x M2 screws; 1 x terminal block for RS485.
• Country of origin: Taiwan.
