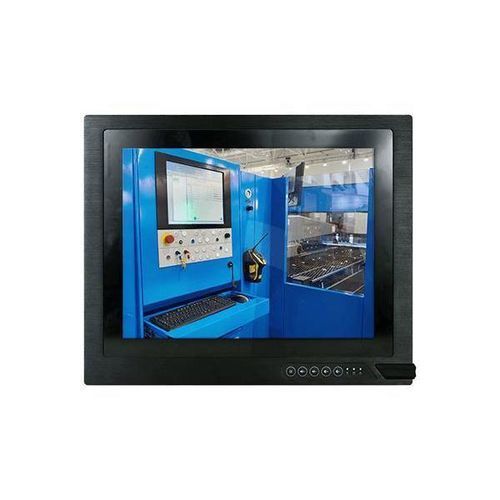

TFT LCD panel PC TPC150-RPS

LED backlightPCAP touchscreenmultitouch screen

Overview
The TPC150-RPS is a 15" industrial touch panel PC designed for HMI and demanding industrial environments. It supports Intel® LGA 1700 processors, DDR5 memory, multiple display outputs and flexible expansion options while providing IP65 front-panel protection for washdown and harsh environments.

Key highlights

• 15" 1024×768 TFT with Projected Capacitive or Resistive touch options
• IP65 front bezel for front-panel protection
• Triple independent display: DisplayPort++, HDMI, VGA
• 2 x 2.5" SATA 2.0 internal drive bays
• 2 x DDR5 SODIMM sockets, up to 64 GB
• Extensive I/O including 2 x GbE, 2 x RS-232/422/485, 6 x USB 3.2 Gen1
• VESA and panel mounting (75x75 / 100x100)

Features

• IP65-rated front for ingress protection
• Triple independent display capability for multi-screen HMI
• DDR5 memory support for higher bandwidth
• Projected Capacitive touch option for multi-touch
• Multiple expansion: PCIe Gen5 x16 slot and M.2 (E & M keys)

Technical specifications

• Processor: Supports 12th/13th/14th Gen Intel® LGA 1700 Socket processors (TDP up to 65 W). Compatible with Core™ i9/i7/i5/i3 and select Pentium®/Celeron® SKUs; lower‑TDP 'T'/'TE' variants supported.
• Memory: 2 x 262-pin SODIMM, Dual Channel DDR5 4800 MHz, up to 64 GB (ECC supported with certain i7/i5 SKUs)
• Display: 15" 1024×768 TFT LCD; Projected Capacitive or Resistive touch; 300 cd/m² brightness; 176°/176° viewing angle; LED backlight ~50,000 h MTBF
• Storage: 2 x internal 2.5" SATA 2.0 drive bays
• Expansion / Interface: 1 x PCIe Gen5 x16 (bifurcation 1x16 or 2x8); 1 x M.2 2230 E Key (PCIe Gen3 x1 & USB2.0, Intel® CNVi); 1 x M.2 2280 M Key (PCIe Gen3 x4 or SATA3, NVMe supported)
• Rear I/O: 2 x GbE (RJ-45); 2 x RS-232/422/485; 6 x USB 3.2 Gen1; 1 x DP++; 1 x HDMI; 1 x VGA; 1 x Line-out (optional)
• Power: AC input 100–240 VAC via C14 connector
• OS support: Windows 10 IoT Enterprise 64-bit; Windows 11 LTSC; Linux
• Environment: Operating 0 to 50°C; Storage -30 to 70°C; RH 10%–90% @40°C non-condensing
• Mechanics / Mounting: Sheet metal chassis; IP65 front bezel; Panel and VESA (75x75 & 100x100) mounting options
• Dimensions & Weight: 403 x 330 x TBD mm; Weight: TBD
• Certifications: CE, FCC Class A

Packing & origin

• Packing list: 1 x TPC150-RPS Touch Panel PC; 1 x Quick Installation Guide
• Country of origin: Taiwan
