TFT LCD panel PC KS101P-IRN
with touch screenPCAP touchscreen10.1"

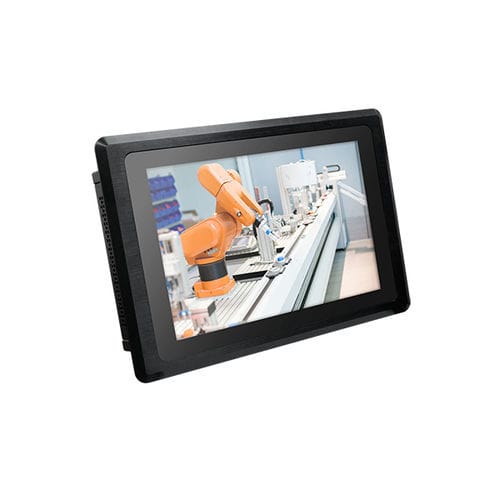

TFT LCD panel PC - KS101P-IRN - DFI - with touch screen / PCAP touchscreen / 10.1"
TFT LCD panel PC - KS101P-IRN - DFI - with touch screen / PCAP touchscreen / 10.1"
Add to favorites
Compare this product
Go to the DFI website for more information

Characteristics

Screen type
TFT LCD, with touch screen, PCAP touchscreen
Display size
10.1"
Processor
Intel Atom Quad-Core, Intel® Core™ 3 Processor N355, Intel® Processor N150, octa-core
Resolution
1280 x 800
Memory
DDR5 SO-DIMM
Construction
fanless
Mounting
VESA mounting, embedded
Applications
industrial
Protection level
IP65
Other characteristics
HMI, Ethernet
Memory size

Max.: 16 GB

Min.: 0 GB

Description

Overview
  • 10.1" fanless industrial touch Panel PC for HMI and embedded applications from DFI
  • Designed for wide-voltage operation (9–36V) and IP65 front protection


Key features
  • 10.1" TFT WXGA (1280×800) with projected capacitive (P‑Cap) touch, 500 cd/m² brightness
  • Wide DC input range (9–36V) and IP65 front panel
  • Multiple M.2 expansion slots (M key, B key, E key) and DDR5 memory support
  • Rich I/O: 2 x GbE, 2 x serial (RS232/422/485), 4 x USB 3.2, 1 x HDMI
  • Intel® UHD Graphics with hardware decode/encode; HDMI up to 4096×2160@24Hz


Ordering & options
  • Model variants: KS101P-IRNW36-N15 (Intel® Atom® N150) and KS101P-IRNW36-N35 (Intel® Atom® i3‑N355)
  • Optional items: Power Cord (785-PWRD); Power Adapter (671-106012-000G, 60W 12V/5A); Panel Mount Kit (761-VS1010-000G)


Technical specifications
  • Processor: Intel® Atom® N150 (Quad Core, 6M Cache, 1.0GHz up to 3.6GHz, 6W) or Intel® Atom® i3‑N355 (Octa Core, 6M Cache, 1.8GHz up to 3.9GHz, 15W)
  • Memory: Single DDR5-4800 SODIMM, up to 16GB
  • BIOS: AMI SPI 256Mbit
  • Display: 10.1" TFT LCD; max. resolution 1280×800; brightness 500 cd/m²; contrast 16:10; backlight lifetime 50,000 hours
  • Touch: Projected capacitive touch
  • Graphics: Intel® UHD Graphics; supports OpenGL 4.6, DirectX 12.1, OpenCL 3.0; HW decode: HEVC/VP9/AV1/AVC; HW encode: HEVC/VP9/AVC
  • Display output: 1 x HDMI (up to 4096×2160@24Hz)
  • Storage: 1 x M.2 2242 M Key (PCIe Gen3 x2 / SATA3.0)
  • Expansion interfaces: 1 x M.2 M key 2242 (PCIe Gen3 x2 / SATA3.0); 1 x M.2 B key 3052 (PCIe x1 / USB3.0 / USB2.0); 1 x M.2 E key 2230 (USB2.0 / PCIe x1)
  • I/O: Ethernet 2 x GbE (RJ-45); Serial 2 x RS232/422/485; USB 4 x USB 3.2; Audio 1 x line-out; Buttons: 1 x power
  • Power: DC input 9–36V via DC jack
  • Environment: Operating temperature 0 ~ 60°C; Storage temperature -30 ~ 80°C; Relative humidity 10 to 95% @ 40°C, non‑condensing
  • Mechanics: Aluminum front bezel; IP65 front panel protection; VESA mount 100 x 100; Dimensions (W x H x D) 294 x 193 x 48 mm; Weight 1.7 kg
  • Shock & vibration: OP: Half-sine, 3G @ 11ms; Non-OP: Half-sine, 5G @ 11ms. Vibration: OP: Random, 1Grms @ 5–500Hz, 30min; Non-OP: Sweep sine, 3Grms @ 10–500Hz, 30min
  • Certifications: CE, FCC, UKCA, RoHS
  • Packing list: 1 x KS101P-IRN Touch Panel PC; 1 x Poron foam; 1 x Quick Installation Guide
  • Country of origin: Taiwan
