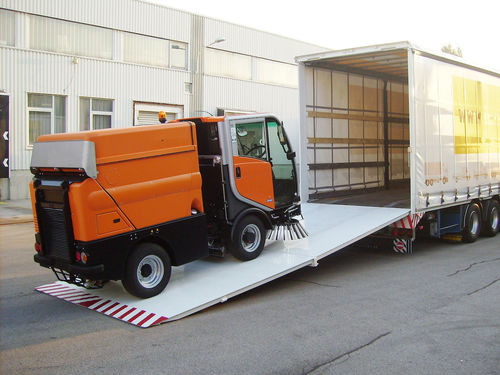

Folding ramp DH-AR2 series

for truckstruck-mountedhydraulic

Heavy duty hydraulic ramp with automaticallly foldable steel platform The DH-AR* form a diverse family of heavy-duty hydraulic ramps with robust steel platforms. The DH-AR2* are ramps with a longer, articulated platform. The top and bottom platform sections are linked with stabilisers, so that they work in a synchronised way, as a pair. The DH-AR21 features a foldable platform over the full width of the vehicle body. The DH-AR.22 [option OAU800.0] is composed of 2 separate foldable platform sections with a void in the middle. Side-shift is available on the DH-AR22 as an option [OAH803]. The most popular platform finishes are: • Solid closed steel platform [standard] • Galvanized air-permeable platform with steel grids [option OAP018.07] • Platform prepared for wood inlay [option OAP801.02] • Vast range of semi-standardized hydraulic ramps with many options to personalize the execution ** Industrial manufacturing with shared components and world-wide spare parts availability • Supplied as a ready-to-mount kit: all articulations, hydraulic cylinders and pipes, wiring etc. is premounted on a ramp frame that is welded as one complete structure to the rear end of the vehicle • Excellent after-sales service. Professional network of regional DHOLLANDIA service branches and independent distributors in more than 70 countries worldwide. CHARACTERISTICS PLATFORM • Reinforced full-width steel platform, manufactured from closed steel sheet • AR...1: longer, articulated steel platform over the full vehicle width • AR...2: longer, articulated steel platform in 2 separate sections with open space between
