Standard lift gate DH-P3 series

foldablefor vehiclesfor gas bottles

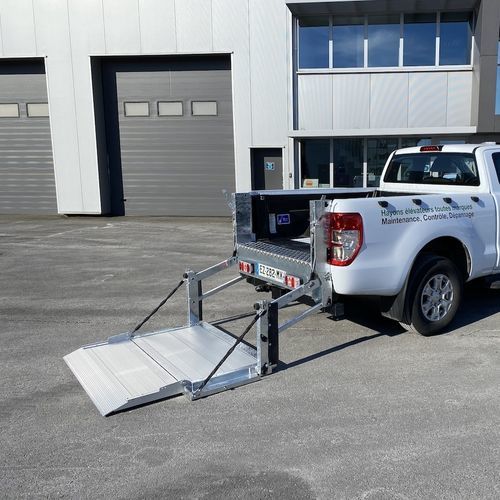

Linear 2-arm lift for pick-ups and drop-side vehicles The DH-P3.07 is a budget-friendly, very robust and reliable solution for pick-up trucks and light-duty commercial vehicles with a service body or drop-side body. In comparison to alternative column lifts DH-VOP.07.K1 / K9, the linear 2-arm geometry moves the platform away from the vehicle floor as it goes down and keeps it free from obstacles such as a towing hitch. The main executions are: • DH-P3.07 : a general cargo execution with foldable steel or aluminium platform • DH-P3G.07 : a dedicated gas-bottle lift with air-permeable steel mesh platform and guard rails The platform is operated by means of 2 lift cylinders (no cables, chains, pulleys etc.) and provides a level ride between the vehicle floor and the ground. The power pack is premounted in the vehicle floor extension. Prevision for rear truck lights and a license number plate, and a rear camera /sensor bar are available as an option. • Excellent price-quality ratio and total cost of ownership (TCO). • Lift combines maximum operational reliability with a great ease of use. • Flat platform, level ride • Standard finish in Protection PLUS (KTL + powder coat). Hot-dip zinc plated finish available as an option. CHARACTERISTICS PLATFORM • P3 (general cargo): flat platform with 2 light-weight foldable aluminium sections • Platform supported by 2 chains L+R FUNCTIONAL & MECHANICAL CHARACTERISTICS • Manual opening and closing of the platform, assisted by powerful torsion springs • Flat platform, level ride • Wide lift arms and 2 lift cylinders for maximum platform stability
