AC/DC power supply P130R51D
adjustablelaboratory

AC/DC power supply
AC/DC power supply
Add to favorites
Compare this product

Characteristics

Type
AC/DC
Output
adjustable
Other characteristics
laboratory
Power

160 W

Input voltage

230 V

Output voltage

Max.: 30 V

Min.: 0 V

Current

Max.: 4 A

Min.: 0.1 A

Description

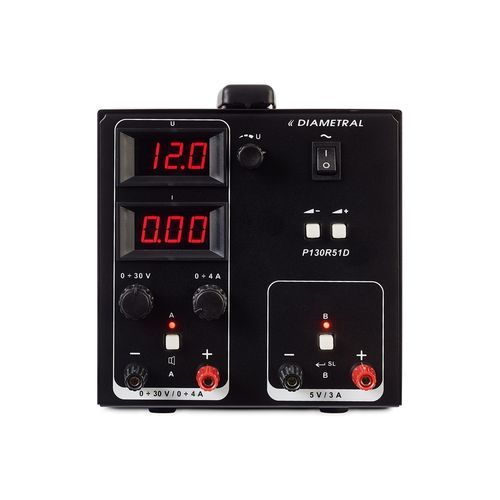

Double laboratory power supply is equipped with one adjustable power supply with flowing voltage regulation in the range of 0 ÷ 30 V with possible limitation of the output current 0.1 ÷ 4 A and one constant voltage source 5 V/3 A. Mains voltage230 V / 50 Hz Adjustable voltage1 xO - 30 V Adjustable current1 x0,1 - 4 A Constat voltage1 x5 V Constat current1 x 3 A Typical ripple2 mV Maximal ripple15 mV Type of meter888 LED Quantity of meters2 Meters accurancy2 Maximal power consumption160 W Dimensions in mm (H, W, D)172 x 164 x 282 Weightca. 6,8 kg
