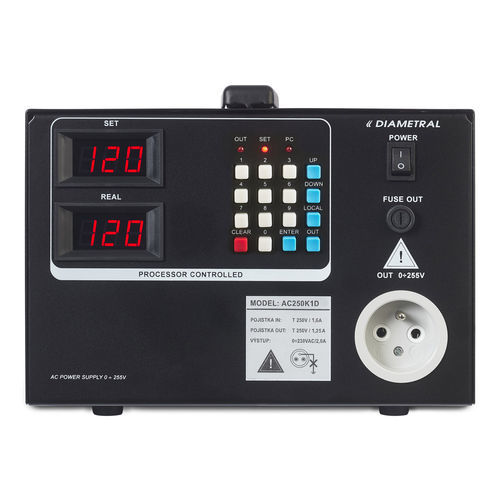

AC/AC power supply AC250K1D

tabletopmeasuring devicelaboratory

A proven series of AC voltage power supplies suitable for powering electrical AC devices in many fields of electrical engineering, electronics and education. The output voltage with a pure sine wave of 50 Hz is obtained by transforming the mains voltage 230V/50Hz with an isolation transformer. Control of the source is possible using the keyboard located on the front panel of the device, or using a personal computer through the D-Control software. This software program allows unlimited time and voltage dependent processes to be defined. Characteristics of laboratory AC power supplies Soft-start function. Output voltage separated from the mains supply. Output voltage changes in 1V steps. Control via keyboard. Control via RS232 by the D-Control program. User programming of processes depending on voltage and time. Large, readable, red LED displays. Sufficiently sized transformer for continuous power supply. Technical parameters Stabilization - NO Stability of the output voltage - according to the stability of the mains Stability of the output frequency - according to the stability of the mains Voltage regulation step - 1 V Control - keyboard or data via RS232 interface Voltage meter - 3 places LED Resolution - 1 V Range - 0 ÷ 290 V Accuracy of the measuring device - 2.5% of the range Mains fuse - T 250 V / 1,6 A Output fuse - T 250 V / 1,25 A Length of the supply wire - 2 m Device color - black Dimensions in mm (H, W, D) - 172 x 244 x 282 Weight - approx. 9.2 kg Warranty - 24 months Soft start The source output is activated when the AC source is switched on after the test has been performed.
