Digital display measuring column DIATRON2200

analogelectronic

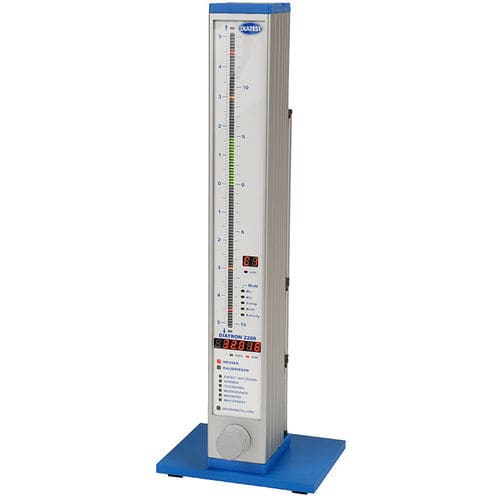

Electronic column with 3-colour bar scale and digital display of measured data   • The column can be equipped with modules for 1, 2, 4 or 8 probes (HBT) • Alternative: using DIAWIRELESS, also in combination with the probes • Static and dynamic (MIN, MAX, TIR, MEAN) measuring modes, also multiplane mode is possible • Bore gauge mode with automatic function, up to 8 measuring points • Resolutions can be switched between 0.001 and 0.0001 mm • Programming of unit is made by the rotary-push-button on the front side or by software • INDUSTRY 4.0 ready
