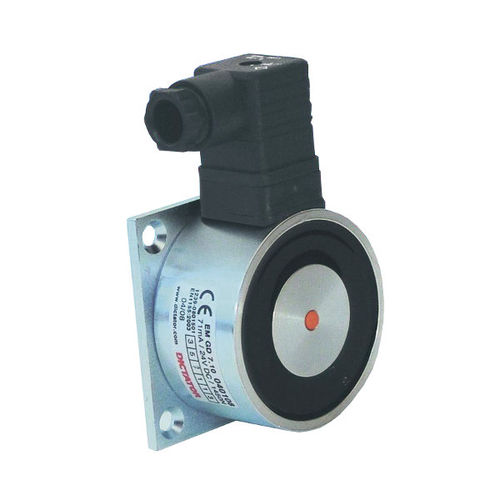

Holding solenoid RI

Electromagnets with IP 65 connection terminal Connected in the waterproof plastic connection terminal EM GD 70 is available with a PG 13.5 inlet, as it’s especially designed for use on ships with larger cable diameters In case the magnets are exposed to the sun, they can be manufactured with an UV resistant sealing compound – contains silicone – (part no. 041014) Electromagnets EM GD 50 and 60 are designed to be used with 24 VDC as well as 24 VAC Equipped with a spark extinction diode as standard: in case of faulty connection, the integrated polarity protection prevents the spark extinction diode from being destroyed As counter piece for the electromagnet, a counter plate has to be fixed on the door All electromagnets with ‘LE 07016’ in their description have been tested according to EN 1155 Product information Voltage24 VDC +/-10 % Temperature range-20 °C to +60 °C Surfacezinc-plated steel Electrical connectionlateral terminals on the magnet Remanence0 N Duty cycle100 % Holding force EM GD 50600 N Holding force EM GD 60700 N Holding force EM GD 60 S1000 N Holding force EM GD 701450 N Power consumption EM GD 50/EM GD 6067 mA (1.6 W) Power consumption EM GD 60 S79 mA (1.9 W) Power consumption EM GD 7071 mA (1.7 W)
