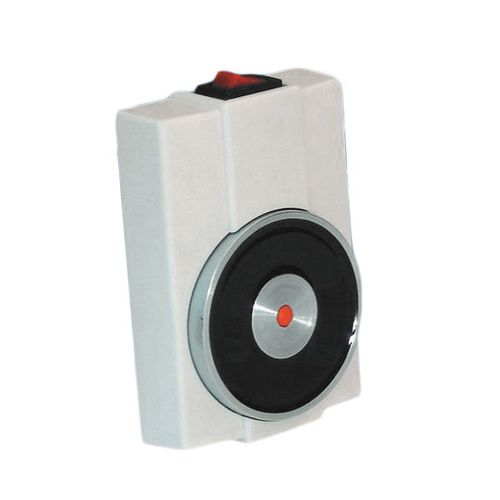

Holding solenoid Range FT

for door

Electromagnets with plastic casing and interrupter key Cased in plastic for high aesthetic requirements Casing can be removed for an easy installation On the base plate there is a connection terminal for easy wiring With an interrupter key on top of the casing Two models available, depending on the insertion of the cable Insertion of the connection cable via a boring in the mounting plate (EM GD 60 F 26 T) Insertion of the connection cable via a lateral PG 7 cable inlet (EM GD 60 F 26 TK), either on the left or right side Equipped with a spark extinction diode as standard: in case of faulty connection, the integrated polarity protection prevents the spark extinction diode from being destroyed As counter piece for the electromagnet, a counter plate has to be fixed on the door All electromagnets with ‘LE 07016’ in their description have been tested according to EN 1155 Product information Voltage24 VDC +/-10 % Power consumption67 mA (1.6 W) Temperature range-20 °C to +60 °C Surfacezinc-plated Electrical connectionconnection terminal on base plate Casingwhite plastic casing Holding force700 N Remanence0 N Duty cycle100 %
