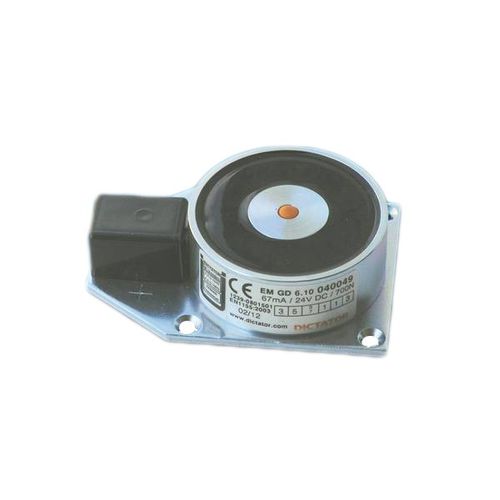

Electromagnets with connection terminal on the mounting plate
Range formed by electromagnets EM GD 40, EM GD 50, EM GD 60 and EM GD 70
Connection terminal on the mounting plate of the magnet
Magnet and base plate of zinc-plated steel as standard
Equipped with a spark extinction diode as standard: in case of faulty connection, the integrated polarity protection prevents the spark extinction diode from being destroyed
As counter piece for the electromagnet, a counter plate has to be fixed on the door
All electromagnets with ‘LE 07016’ in their description have been tested according to EN 1155
Product information
Voltage24 VDC +/-10 %
Temperature range-20 °C to +60 °C
Surfacezinc-plated steel
Remanence0 N
Duty cycle100 %
Holding force EM GD 40300 N
Holding force EM GD 50600 N
Holding force EM GD 60700 N
Holding force EM GD 60 S1000 N
Holding force EM GD 701450 N
Holding force EM GD 70 S1700 N
Holding force EM GD 70 R2000 N
Power consumption EM GD 4075 mA (1.8 W)
Power consumption EM GD 50/EM GD 6067 mA (1.6 W)
Power consumption EM GD 60 S79 mA (1.9 W)
Power consumption EM GD 7071 mA (1.7 W)
Power consumption EM GD 70 S/EM GD 70 R142 mA (3.4 W)
