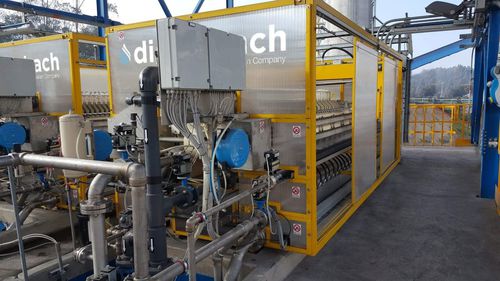

Side-beam filter press SB

plate and framemembranerobotized

Overview
Diefenbach SB Series side beam filter presses are industrial liquid‑solid separation machines designed for filtration and dewatering in a variety of process sectors. The design features two longitudinal side beams that support a pack of recessed or membrane plates covered by filter cloths, allowing controlled cake formation and discharge.

How SB Series Side Beam Filter Presses Work
A hydraulic cylinder drives a moving head to compress the plate pack between the two side beams, forming filtration chambers. Feed slurry is pumped into the chambers; filtrate passes through the cloth and exits via filtrate piping while solids accumulate as a cake on the cloth. At cycle end the plates open and discharge largely drip‑free cakes; plates are then shaken or washed to remove residual material before the next cycle.

Why Diefenbach SB Series
Diefenbach has manufactured side beam filter presses since 1907 and provides in‑house laboratory testing and pilot presses to select optimal plate types, cloths and process parameters for each feed. The SB Series uses a single main hydraulic cylinder to minimize structural stresses and ensure synchronized plate movement. Optional features and automation packages allow adaptation to specific process, safety and monitoring requirements.

Features & Benefits

• Dual feed inlets: fed from both ends to improve chamber filling, reduce inlet velocity and enhance cake uniformity.
• Single hydraulic cylinder drive: ensures synchronized plate movement and reduces structural stress.
• Core blow system: clears the central filling port before discharge to improve cake dryness and reduce sealing buildup.
• Plate shaking device and automated cloth washing: robotic high‑pressure autowash (up to 100 bar / 1450 psi) or overhead rapid wash for frequent cycles.
• Multiple plate styles: recessed (chamber) and membrane plates to optimize cake thickness and dryness.
• ATEX/explosion‑proof options: available for hazardous environments.
• Advanced automation and remote monitoring packages: support operation, diagnostics and maintenance.

Applications & Package Options
SB Series presses are suited to small and medium duty applications with plate sizes up to 1500 x 1500 mm. Configurations include various plate opening styles, cloth washing systems, shaking devices and dual feed arrangements. Diefenbach offers lab testing and pilot equipment to tailor plate type, cloth selection and operating parameters to the feed material and process objectives.

Technical specifications

• Model series: SB Series (side beam filter presses)
• Plate styles: recessed (chamber) plates and membrane plates
• Maximum typical plate size: up to 1500 mm x 1500 mm
• Drive: single main hydraulic cylinder for synchronized plate movement
• Feed: dual feed inlets (fed from both ends)
• Washing options: robotic high‑pressure autowash (up to 100 bar / 1450 psi) and overhead rapid simultaneous wash
• Core blow system: available to improve cake dryness
• Plate maintenance: plate shaking device for residue removal
• Certifications / options: ATEX/explosion‑proof designs available
• Support: in‑house lab testing and pilot presses for process optimization
