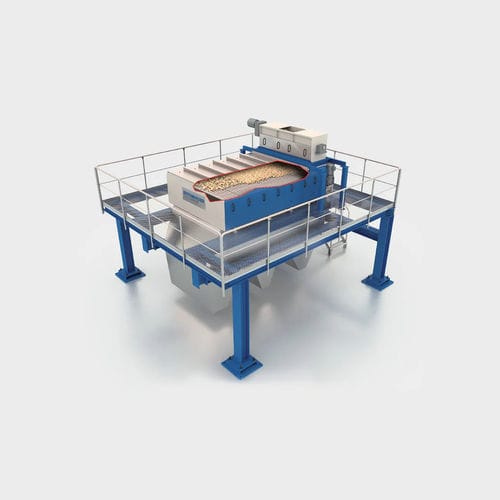

Process screener CS 4000x2000/ 26+8

for wooddiscfor pellets

ClassiScreen classifies the material according to thickness by means of gaps between the ClassiRolls. Material is screened into predetermined fractions, including fines, flakes, mini chips, chips and oversized. The determination of fractions is done by adjustable gaps, roller pattern depth and rotation speed of the rolls. The screen is configured for the needs of the process. Application Panel board industry (PB, MDF) Pellet plants Wood recycling Energy generation Customer benefits Best screening accuracy with high-precision ClassiRolls Non-plugging, strong double-drive system Efficient thickness screening High capacity per screening area Low energy consumption, maintenance costs, dust emissions and noise level Technical features ClassiRolls can be selected according to screening application: Standard Plus for screening fresh wood and saw dust Dura for screening contaminated wood DuraPlus for screening highly contaminated material such as urban waste wood Various roll pattern depths available for different applications Disc rollers available for separating larger fractions Gaps between the rolls can be adjusted individually according to application requirements Roller rotation speed is adjusted by means of a frequency converter drive system
