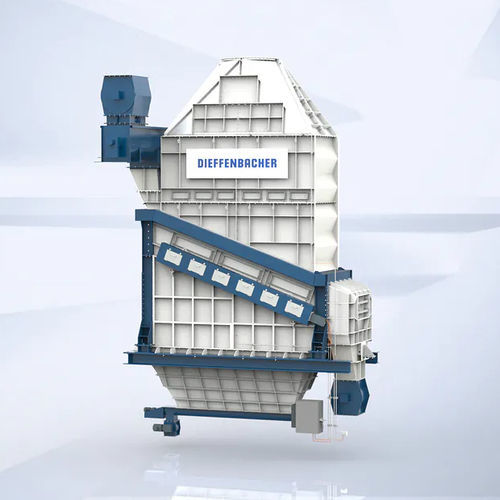

Recycling sorting system EVOsifter P

glassmetal

Incoming material enters the sifter body via a laterally positioned airlock and a screw onto an inclined perforated screen deck where it is equalized. Air continuously flows from the bottom through the screen, the material and the zig-zag section. The air stream instantly suspends the material acceptable for particleboard production, transports it to the outfeed and onto the cyclone. Large contaminants and coarse materials remain on the screen deck and are discharged. Small impurities (sand, minerals, glass, etc.) fall through the screen deck and are conveyed into the dump. Application Particleboard industry and recycling industry Separating foreign materials (glass, sand, stones, metal or bark) Fractionating of core and surface layer particles Customer benefits Consistent air flow for sifting over the entire air grader body Reliable removal of heavy contaminants Excellent separation accuracy according to density, thickness and sinking speed of the wood particles High product quality Modular design for low investment Technical features One inclined perforated screen deck Zig-zag shaped internals Available in different sizes for both the core layer and the surface layer particles Using up to 90 to 95% recirculation air
