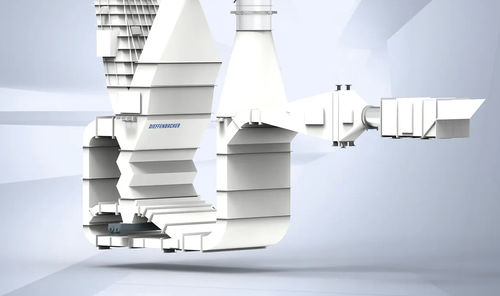

Metal separator EVOsifter M

rubberfiberair

The EVOsifter M separates the material in the vertical air flow. Heavy and coarse material is discharged via a screw conveyor and a downstream arranged air lock. The accepted material is conveyed pneumatically to a high efficiency cyclone. There, the material is separated from the air flow and discharged by an air lock. Application The EVOsifter M is used in the MDF, HDF, THDF and door skin production for separating: Wood particles Glue lumps Coarse fibers Metal rubber and other foreign material Customer benefits Increased product quality Reduced risk of press damage Simple and reliable Safe design according to high European Standards Low operating costs and maintenance effort High press performance by avoiding fiber temperature drop from dryer to forming Low exhaust volume Technical features No internals which could cause blockages Pressure control to enable adjustments of capacities Design according to ATEX directives with pressure relief and/or explosion suppression Fan arrangement on clean air side downstream cyclone prevents wear on fan impeller and impeller housing Fan impeller with high efficiency Process Heating system Air grader process with usage of up to 70% recirculated air
