Rotary piston flow meter ALTAIR V4
for waterin-linecompact

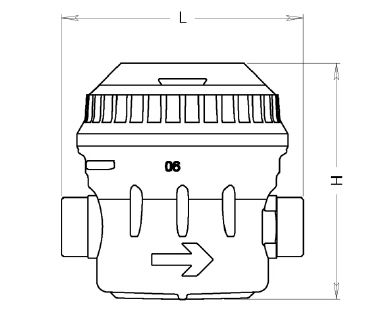

Rotary piston flow meter - ALTAIR V4 - DIEHL Metering - for water / in-line / compact

Rotary piston flow meter - ALTAIR V4 - DIEHL Metering - for water / in-line / compact - image - 2

Rotary piston flow meter - ALTAIR V4 - DIEHL Metering - for water / in-line / compact - image - 3

Add to favorites

Compare this product

Characteristics

Technology

rotary piston

Fluid

for water

Installation

in-line

Other characteristics

compact

Volumetric flow rate

2.5 m³/h
(88.2867 ft³/h)

Process temperature

Min.: 0 °C
(32 °F)

Max.: 30 °C
(86 °F)

Process pressure

16 bar
(232.06 psi)

Description

Application: ALTAIR V4 represents the new generation of volumetric meters developed within the framework of the MID (Measuring Instruments Directive) and field requirements. The meter is very compact, thus adapting to the most restrictive environments (i.e. water boxes). ALTAIR V4 is a robust meter that is compatible with the different qualities of water. ALTAIR V4 is modular and may be fitted at any time with the IZAR RADIO, the IZAR DOSING device, or the pulse emitter IZAR PULSE gateway to other systems. Features: Nominal diameter DN 15 Start flowrate at 0.5 l/h Installation in all position Compact New counter with modularity "Ha + Ti" Composite & Brass version Glass/metal register in option MID approval up to R 800 High dynamic range (up to 1.000)
