Flexible spill containment berm BRSO 30000AUTO

PVC-coated

Description

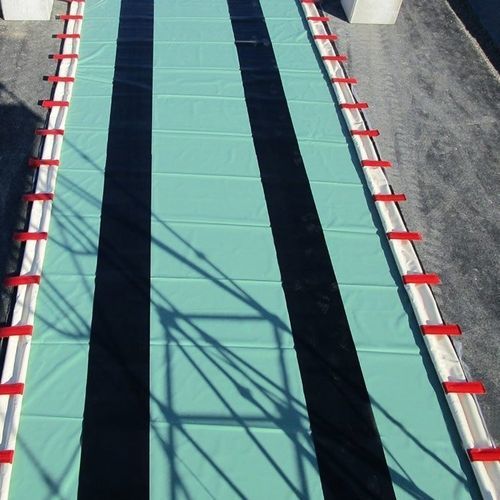

Foldable, self-supporting removable containment basin with welded brackets, manufactured to order. Basin made of PVC-coated polyester fabric (1000 g/m2). Intended for collection of environmentally hazardous liquids on industrial sites. Peripheral PE foam floats (Ø 75 mm) compress under vehicle wheels and recover shape to allow simple vehicle entry and exit; foam edges rise progressively as the basin fills.

Details
Retention capacity: 30,000 L.
Dimensions: 20 x 5 m.
Filled height: 30 cm.
Folded volume: approx. 1.3 m3.
Colour: beige.
Weight (empty): 166 kg.

Keywords

• removable containment basin
• flexible containment
• occasional retention basin
• foldable containment pond
• temporary unloading area

Technical characteristics / specifications

• Reference: BRSO 30000AUTO
• Basin fabricated from PVC-coated polyester fabric (1000 g/m2). On request, manufacture possible in polyurethane or special polymers for improved chemical resistance.
• Basin fitted with galvanized steel plates trapped in sleeves welded to the basin.
• PE foam floats (Ø 75 mm) around the entire perimeter.
• Supplied with repair kit.
• Geotextile protection between ground and basin (option).
• Storage box (option).
• Application: unloading areas, vehicle washes, tanker loading/unloading at industrial sites.
• Deployment: low weight and compact folded volume; retention area ready within minutes after unfolding.
• Colour: beige.
• Approx. folded volume: 1.3 m3.
• Empty weight: 166 kg.
