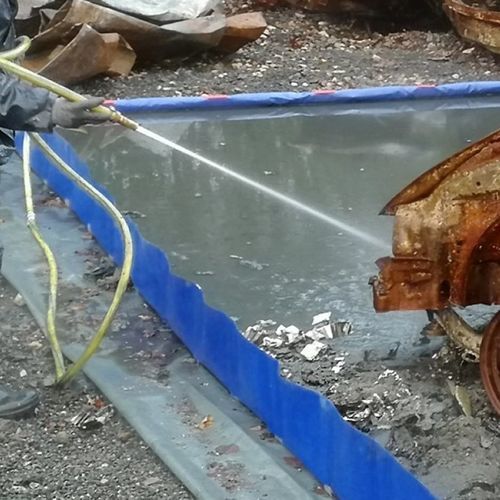

Flexible spill containment berm BRSO 8750 SM2E2A

vehicle resistantPVC-coated

Overview
Removable flexible mixed retention basin, custom 8,750 L capacity, suitable for temporary or permanent storage of polluting products. Compatible with hydrocarbons, oils, plant protection products, chemicals and other pollutants.

Construction and design

• Envelope in 900 g/m PVC-coated polyester.
• Foam tubes form self-supporting faces, they compress under vehicle passage and recover their shape afterwards.
• Aluminium angle sections insertable into sleeves for reinforced faces.
• Mixed version: combination of self-supporting faces and faces with insertable angles (see details below).

Face configuration (as stated on the datasheet)

• Primary note: 2 faces with aluminium angles to insert into sleeves and 2 self-supporting faces made of foam tubes.
• Detailed note: 3 faces with aluminium angles to insert into sleeves and 1 self-supporting face reinforced by integrated angles (no on-site assembly on that face) made of foam tubes to allow passage of wheeled equipment.

Dimensions and capacity
Dimensions: 10 m x 3.5 m x 0.25 m height
Retention capacity: 8,750 L
Manufactured in France

Available options

• Rubber reinforcement strips for wheel passages.
• Drain valve.
• Specific coating for corrosive products.

Recommended use
Temporary or permanent containment of items containing hydrocarbons, oils, plant protection products, chemicals and other pollutants. Suitable for passage and parking of wheeled equipment on the self-supporting face.

Technical characteristics / specifications

• Product reference (on the datasheet): BRSO 8750 SM2E2A
• Type: Removable flexible retention basin, mixed version (self-supporting faces + faces with angles)
• Capacity: 8,750 L
• Dimensions (L x W x H): 10 m x 3.5 m x 0.25 m
• Material: 900 g/m PVC-coated polyester
• Reinforcements: Aluminium angles (reinforced faces) and possibility of integrated angles on self-supporting face
• Construction elements: Foam tubes for self-supporting faces
• Options: Rubber wheel reinforcement strips, drain valve, coating for corrosive products
• Manufacture: France
