Liquid filter bag 45724572

for oil/water separatorsfor water filtersnon-woven

Description

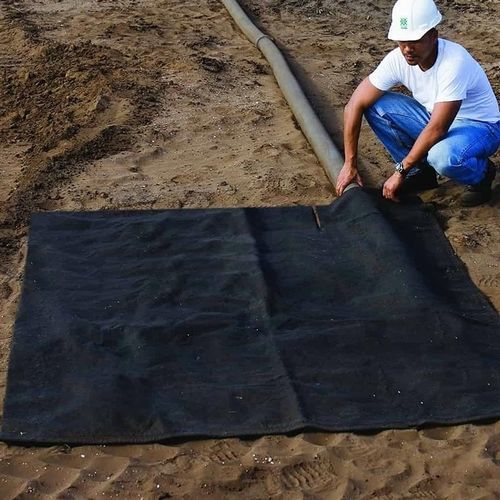

Filter bag used during works (earthmoving, cleaning, dredging, dewatering...). The bag enables filtration of sludges, turbid waters and waters contaminated by hydrocarbons, oils, silts, sludge, debris and sediments pumped during drainage operations. It is attached to the end of the discharge hose. During drainage of water evacuated through the pipes, it filters the water and retains hydrocarbons, sludges, sediments, silts, etc.

Construction / materials
Made of polypropylene non-woven geotextile, 230 g/m² and filtration mesh 0.18 mm.

Main characteristics

• Dimensions: 4572 x 4572 mm
• Outlet flow rate: 90 m3/h
• Bag volume: 6371 L
• Hydrocarbon retention: 83 L
• Sludge retention: 12246 kg
• Reference: SACHE 45724572

Characteristics / technical specifications

• Material: polypropylene non-woven geotextile, 230 g/m²
• Filtration mesh: 0.18 mm
• Dimensions (L x W): 4572 x 4572 mm
• Nominal volume: 6371 L
• Outlet flow rate: 90 m3/h
• Hydrocarbon retention: 83 L
• Sludge retention (indicative): 12246 kg
• Use: filtration of turbid and contaminated waters (site works, earthmoving, cleaning, dredging, dewatering operations)
