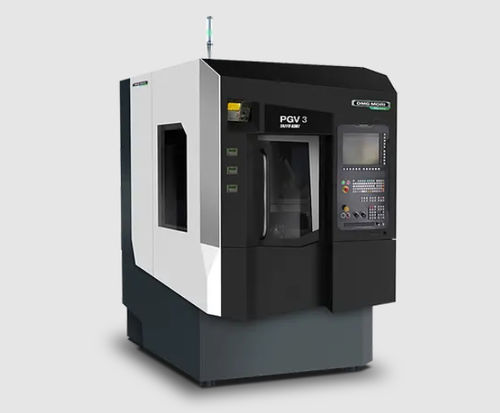

External cylindrical grinding machine PGV 3

internal cylindricalfor gearsworkpiece

Reduction of cycle time with 3-ACC (Auto. Chuck Change) system A work loading/unloading station and 2 grinding stations are equipped as standard, which significantly improves production capacity. Work change and set-up can be done while grinding other 2 works. Different processes can be done in 2 grinding stations at the same time. Wheel spindle combination Standard : 2 spindles (Internal + External) Option 1 : 2 spindles (Internal + Internal) Option 2 : 3 spindles (Gang tooling spec) Internal (Grinding ST.1) + Internal & External (Grinding ST.2) Space-saving feature With its multi-processing capability, floor space and labor cost is less than half compared to having an ID grinder and an OD grinder separately. Other features Auto. measuring system (option) Single point dresser (Rotary dresser available as an option) Scale feedback control for X and Z-axis (option)
