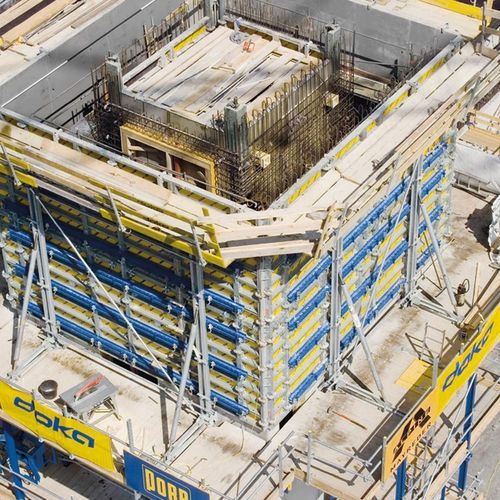

Elevator safety platform

staircase

Overview
The shaft platform is a crane-lifted climbing formwork system designed for inside-shafts (lift shafts, staircases). The platform and shaft formwork can be repositioned in a single crane cycle and support wall formwork from the inside of the building core. It can be combined with Framax stripping corner I to allow opening and closing of the formwork without a crane.

Key benefits

• High adaptability to variable shaft widths thanks to telescoping shaft beams.
• Quick repositioning: the whole unit can be relocated in one crane cycle, reducing labour and crane time.
• Simple mounting: suspension-mounting on the structure using a gravity pawl and a main beam head; no expendable anchors required.
• Efficient formwork handling: Framax stripping corner I enables setting up and stripping the formwork without crane assistance.
• Enclosed-platform option provides an internal working area for execution of shaft works.

System integration / Application
The shaft platform is intended to be used with climbing formwork systems (e.g. MF240) for building-core construction. Typical uses include:

• Supporting wall formwork for lift shafts and staircases.
• Providing a working platform for safe access and execution of internal shaft works.
• Serving as a repositioning platform where wall formwork is only slightly detached from the concrete.

Documents & user information
Product leaflets, short instructions and user information booklets are available in multiple languages, including safe-working instructions and parts lists.

Technical specifications

• Product type: crane-lifted shaft platform (climbing formwork for inside-shafts).
• Adaptation: telescoping shaft beams for variable shaft widths.
• Repositioning: entire unit relocatable in one crane cycle.
• Mounting: suspension-mounting using gravity pawl and main beam head; no expendable anchors required.
• Compatibility: compatible with Framax stripping corner I for crane-free opening/closing.
• Applications: lift shafts, staircases and building-core internal formwork and working platform.
