Climbing formwork Sperrenschalung

framesingle-sideddam

Overview

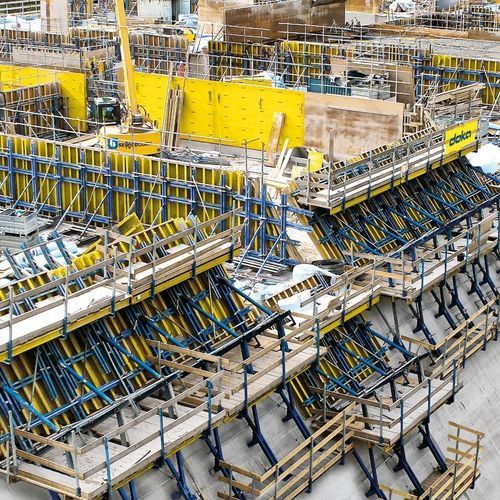

Crane-lifted climbing dam formwork is designed for one-sided concrete construction such as dams, river structures, intake towers and pylons without the need for formwork ties. The climbing tower transfers all pouring loads into the previous poured section. System variants D15, D22 and D35 allow economical adaptation to project-specific block dimensions and load requirements.

Rapid construction progress

• Use the same formwork for starting blocks and regular cycles to enable efficient forming from the start
• Reduced crane commitment by lifting climbing tower and formwork as a single unit
• Quick and precise alignment in all directions thanks to simple adjustment options

Project-specific solutions

• Economic standard solutions for typical block heights up to 5.00 m enabled by statically optimised climbing towers
• Flexible choice of formwork through combinations with framed formwork, wall formwork or steel framework
• Variants with rollback capability ideal for reinforcement work and complex sequencing
• Adaptable climbing tower and open planning options for changing wall inclinations during construction

Safe working conditions

• Secure attachment to the structure via heavy-duty suspension points
• Closed, generously dimensioned working platforms up to 2.80 m wide provide safe access and workspace
• Safe vertical movement between platforms with an integrable ladder/access system

System options
Available in system variants D15, D22 and D35 to match block height and load demands; select the variant that fits anchor forces, platform width and project sequencing needs.

Technical specifications

• Product type: Crane-lifted climbing formwork for one-sided applications
• System variants: D15, D22, D35
• Typical block heights: up to 5.00 m (standard solutions)
• Climbing tower function: transfers pouring loads into previous pouring section
• Formwork compatibility: framed formwork, wall formwork, steel framework; variants with rollback capability
• Working platform width: up to 2.80 m (depending on system)
• Attachment: heavy-duty suspension points for secure connection to structure
• Access: integrable ladder/access system for safe movement between platforms
