Railing post

Overview
These tried-and-tested Doka systems give your site crew optimum protection and contribute to a smooth workflow. When crews are properly protected, they work safely, more quickly and more efficiently.

Benefits

• Uninterrupted safety
  Comprehensive protection against fall hazards on structures and formwork; hot-dip galvanised finish; conforms to EN 13374 Class A.
• Convenient and easy to mount
  Quick-fixing by wedge; only tool required is a hammer.
• Multi-functional
  Suitable for many situations: Handrail clamp S, Handrail clamp T, Handrail post 1.10 m.

Use / Application

• Handrail clamp S
  For safeguarding exposed edges on buildings; attaches to timber formwork beams at any point. Wide clamping range allows use for guard rails on many parts of the site, on the formwork and on the structure.
• Handrail clamp T
  Provides safety from casting until permanent railings are erected; can be fixed to reinforcement hoops or edge anchors without adapters or accessories. Also suitable as fall-arrest barriers on precast stairways or hollow-element walls.

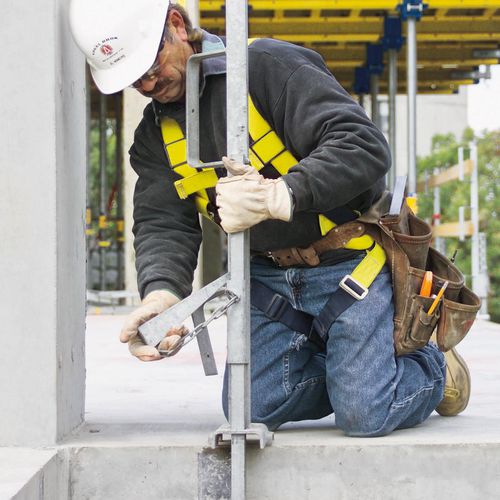

• Handrail post 1.10 m
  Fast and safe solution to erect temporary safety railings along slab edges, floor openings and other fall-hazard locations, or as opposing guard-rails on wall formwork. All-steel construction, hot-dip galvanised for long service life.

Mounting / Fixing methods

• Quick-fixing with a wedge (only hammer needed)
• Insert in an attachable sleeve or screw-sleeve in soft concrete
• Install in a hole drilled subsequently in hardened concrete
• Use the cross borehole of a framed formwork panel with a hexagon nut

Characteristics / technical specifications

• Product group: Handrail posts & clamps
• Material / finish: hot-dip galvanised, all-steel construction
• Standards: conforms to EN 13374 Class A
• System components: Handrail clamp S; Handrail clamp T; Handrail post 1.10 m
• Primary applications: Temporary fall protection on structures and formwork during construction
• Mounting methods: wedge quick-fix; sleeve/screw-sleeve; drilled hole; cross borehole with hexagon nut
