Mast climbing work platform Xclimb 60

Overview

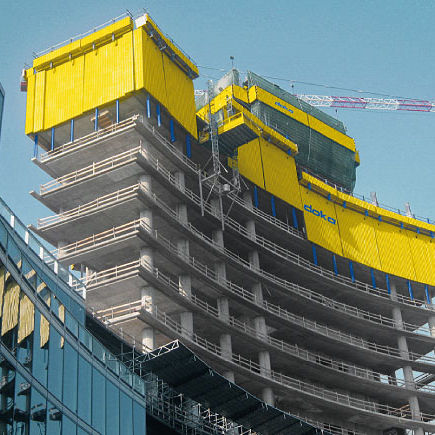

The Protection screen Xclimb 60 is a hydraulically climbed façade enclosure designed to enable safe construction work on the upper levels of high‑rise buildings while providing weather protection. The system is structure‑guided and can be repositioned by crane or, where configured, by a mobile hydraulic unit. Multiple design variants meet diverse site requirements.

Key benefits

• Gapless perimeter enclosure protects personnel from fall hazards, wind and weather.
• Structure‑guided climbing enables safe repositioning even in high winds.
• Horizontal and vertical sealing prevents dropped objects during lifting and relocation.
• Modular design adapts to any floor plan or façade geometry.
• Adjustable floor supports and relocatable working platforms accommodate variable storey heights and facade inclinations.
• Option for pre‑assembly reduces on‑site time; mobile hydraulic option reduces crane usage.

System & design variants
Protection screen Xclimb 60 with Framed enclosure Xbright
The Xbright framed enclosure is a rentable framed panel system with large panels and simple connections for reduced erection times. It accepts different inlays to match site needs.

Design variant with polycarbonate inlay

• Translucent
• Wind‑impermeable
• Non‑see‑through

Design variant with mesh inlay

• Translucent
• Wind‑permeable

All‑round safety (polycarbonate inlay)
The translucent polycarbonate inlay provides natural lighting across the enclosed work decks, is wind‑impermeable and non‑see‑through, enhancing site crew safety and productivity.

Protection screen Xclimb 60 with trapezoidal metal sheet enclosure
Combination with a trapezoidal metal sheet enclosure suits complex structure geometries. The system can be dimensioned flexibly and adjusted precisely to the layout to close all gaps and prevent tools or small parts from falling.

Design variant with trapezoidal metal sheet

• Wind‑impermeable
• Non‑see‑through

Design variant with perforated trapezoidal sheet

• Translucent
• Wind‑permeable

Table Lifting System TLS
The Table Lifting System TLS is an add‑on that allows safe repositioning of floor slab formwork, tools and equipment without a crane. TLS can be suspended from the structure or used as a self‑climbed unit and integrated into the protection screens.

References (selected)

• Post Rotterdam
• Hudson's Site
• 100 Flatbush
• Aloft Hotel, Hudson Yards
• Marina Tower
• Franklin Turm
• 55 Hudson Yards

Technical specifications

• System type: hydraulically climbed, structure‑guided façade protection screen (Xclimb 60).
• Operation: structure guidance enables use in windy conditions; repositioning by crane or mobile hydraulic unit.
• Modularity: intelligent modular system adaptable to any façade shape and varying storey heights.
• Floor supports: adjustable supports for varying and constant façade inclinations.
• Enclosure sealing: horizontal and vertical sealing to prevent dropped items during lifting and relocation.
• Enclosure options: framed panels (Xbright) with polycarbonate or mesh inlays; trapezoidal metal sheet; perforated trapezoidal sheet.
• Integration: compatible with Table Lifting System TLS for crane‑free repositioning of formwork and equipment.
