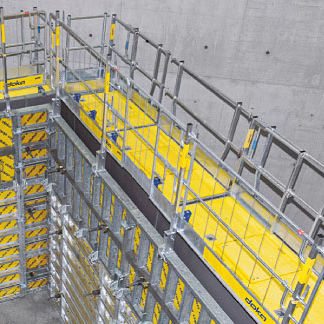

Work podium Xsafe plus

Overview
The pre-assembled fold-out working platforms with integrable front/rear and side railings, ladders and self-closing manhole lids are ready for immediate use and significantly improve site safety. The system is compatible with Framax Xlife framed and column formwork units, Framax Xlife plus and wall formwork FF20, Top 50 and Top 100.

Key benefits
High workplace safety

• Safe assembly on the ground: lift-in-one units allow horizontal assembly before lifting.
• Hazard-free access to the work deck via integrable telescoping ladders and self-closing manhole lids.
• All-round front/rear and side railings provide continuous fall protection on the formwork.
• Systemised platform extensions and corner transitions eliminate improvised solutions.

Fast workflows

• Pre-assembled fold-down units speed up erection and dismantling.
• Formwork and platform can be raised together in a single crane cycle for rapid repositioning.
• Unobstructed walkaround access as panel struts are fixed to the rear of the platform.
• Workflows optimised by integrated connectors and standardised interfaces.

Saves time, cuts costs

• Single platform concept usable across Doka wall systems reduces inventory variety.
• Retrofit option for upright formwork using a lifting adapter minimises additional parts.
• Lower commissioning quantities reduce storage and transport costs.

System

• Platform lengths available from 1.00 m to 2.70 m (three length options for framed and beam formwork).
• Steel frame protects platform decking from site damage.
• Integrated connection points simplify attachment of add-on components (corner transitions, closures).
• Platform telescopes up to 0.60 m per side using the Xsafe plus 0.60 m extension to close gaps and create safe transitions.

Components and features

• Xsafe plus supporting strut: allows platform inclination adjustment by ±5° so the work deck remains horizontal on inclined formwork and transfers forces when panel struts are connected.
• Side railing: integrable for left or right use; closure gaps between platforms can be telescoped in 5 cm increments up to 50 cm and shifted rearwards for access.
• Counter railing (mounted ahead): provides fall protection before stepping onto the platform so side protection is complete on all sides.
• Ladders and manholes: integrable telescoping ladder and self-closing manhole provide hazard-free access; ladder range 155 cm to 271 cm.
• Handrail extension: secures full protection when platforms are enlarged with extensions.
• Framax adapter XP: enables mounting of protective grating XP while unit is flat; handrail post can tilt by 15° to give extra space for concreting operations.
• Lifting adapter and lifting waler: lifting adapter allows mounting on already upright framed formwork; lifting waler permits lifting and repositioning of large units together with the platform system (CE-marked, supplied with instructions).
• Swivel plate: allows delivery of large formwork units complete with platform when space is limited, reducing on-site assembly.

Compatibility / Use

• Designed for framed formwork and timber-beam formwork.
• Compatible with Framax Xlife framed and column units, Framax Xlife plus and wall formwork FF20, Top 50 and Top 100.
• Platform waling 1.50 m attaches to framed formwork for pouring-platform connection; 2.10 m waling used for vertically stacked panels and alignment of intermediate platforms.
• Xsafe plus waling connector links platform or multipurpose walings to timber-beam formwork.
• Xsafe plus column adapter enables safe ladderways and fully walkable platforms on column formwork.

Application examples

• Use as a pouring platform with the lifting adapter to reduce commissioning quantities at the pouring level.
• Reposition large units by lifting them upright after horizontal assembly together with the platform system.
• Transport and handling facilitated by swivel plate and delivery of large units pre-fitted with platforms to reduce on-site work.

Technical specifications

• Platform lengths: 1.00 m to 2.70 m.
• Platform extension: telescopes up to 0.60 m per side (Xsafe plus 0.60 m).
• Side-telescoping increments for closure gaps: 5 cm steps up to max. 50 cm.
• Telescoping ladder range: 155 cm to 271 cm.
• Platform inclination adjustment via supporting strut: ±5° (work deck remains horizontal).
• Platform walings: 1.50 m (pouring platform) and 2.10 m (stacked panels / alignment).
• Lifting waler: CE-marked; supplied with operating instructions.
• Compatibility: Framax Xlife framed and column units, Framax Xlife plus, FF20, Top 50, Top 100 and timber-beam formwork with appropriate connectors.
