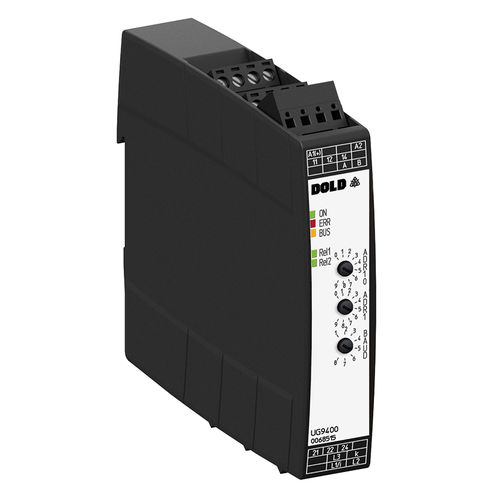

The multifunctional measuring relay UG 9400 of the VARIMETER PRO series allows easy parameter setting, monitoring and diagnosis via a Modbus RTU interface. The measuring relay simultaneously monitors up to 9 different measured variables such as voltage, voltage asymmetry, current, cos phi, active, apparent and reactive power as well as frequency and phase sequence.The measurement in three-phase and single-phase networks is very easy and without much wiring effort.
Features
• Multifunctional measuring relay acc. to IEC/EN 60255-1
• With galvanic separated Modbus RTU interface
• Voltage monitoring (1- or 3-phase)
• Current monitoring
• Frequency monitoring
• Power factor cos phi
• Phase sequence, phase failure
• Voltage / angular asymmetry
• Active, reactive and apparent power
• Start up time delay, response delay
• Adjustable hysteresis 0.2 ... 50 % of the response value
• Error memory
• 2 changeover contacts
• Relay function energized / de- energized on trip parameterizable
• Width 22.5 mm
Advantages / Customer benefit
• Simple parameterization, monitoring and diagnosis
• Compact design
• Simultaneous monitoring of up to 9 measured variables
• Large measuring range 3 AC 24 ... 690 V
• Min-, Max-value or window monitoring
• Auxiliary voltage ranges AC/DC 24 ... 230 V or AC 24 ... 400 V
• Early detection of irregularities
• Increases plant availability and productivity
• Differentiated error messages
• Space and cost saving
• Reduced wiring
• Lower investment, operating and maintenance costs
