position indicator / LED / integrated / square

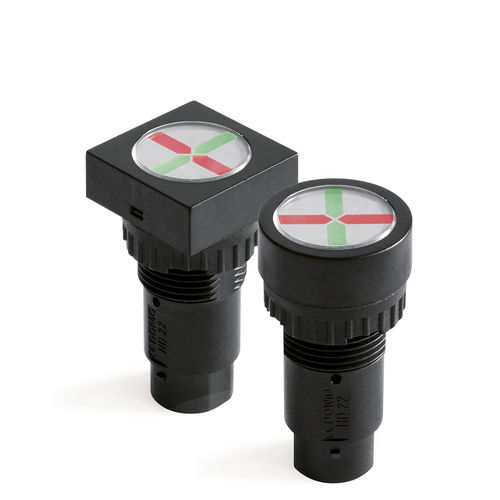

Semaphore LED indicator with Faston connector.
Ø 22 mm BODY/CUT-OUT
Ø 30 mm ROUND HEAD
30x30 mm SQUARE HEAD
Protruding, flush mounting, round head or square head.
As an alternative to the standard protruding version (type A) HD22/30 CR is available flush mounting (type B), both version can have round head or square head.
Integrated bridge rectifier to operate in both alternating current (VAC) and direct current (Vdc) automatically.
If you prefer, you can choose between the Positive Common or the Negative Common versions.
Up to you.
Integrated Rectifier Bridge to work in Alternating Current (AC) or Direct Current (DC), automatically.
Low power consumption, protection to dust and high water.
With heat or cold, it always works.
Connection Faston 2,8×0,5mm
Type A protruding
LED consumption 20 mA
Protection degree IP54
Working temperature -20°C +60°C
LED life at AT 25°C >100.000h
Power supply AC/DC 24Vac/dc 48Vac/dc 110-130Vac/dc
Power supply AC 240Vac
Power supply DC 220Vdc
Other power supplies on request
Options on request
Integrated Lamp Test
Connection Flying Leads
Inbuilt Diode to avoid reverse feeding
Double Common + Lamp Test
B Type - Flush Mounting square (30x30mm cut)
B Type - Flush Mounting round (Ø30mm cut)
