LED beacon / 24VDC / 48VDC / 24VAC
HD16/24 PHR

Add to MyDirectIndustry favorites
Compare this product
LED beacon / 24VDC / 48VDC / 24VAC LED beacon / 24VDC / 48VDC / 24VAC - HD16/24 PHR
{{requestButtons}}

Characteristics

  • Technology:

    LED

  • Voltage level:

    24VDC, 48VDC, 24VAC, 110VAC, 48VAC

Description

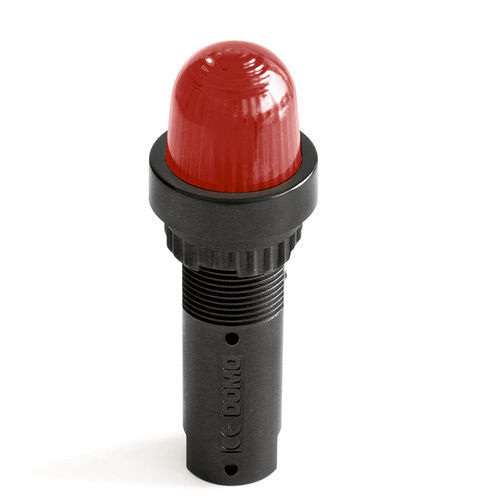

Small LED Beacon Light with Faston connector.

Ø 16 mm BODY/CUT-OUT
Ø 24 mm HEAD
Ø 19 mm LED LENS


Available colors

Red
Green
Orange
Yellow
Blue
White
Bicolor RG


Technical features

Connection Faston 2,8×0,5mm
Integrated Rectifier Bridge
Cluster LED
LED consumption 15mA
Protection degree IP54
Working temperature -20°C +60°C
LED life at AT 25°C >100.000h


Available voltages

Power supply AC/DC 24Vac/dc 48Vac/dc 110-130Vac/dc
Power supply AC 240Vac
Power supply DC 220Vdc
Other power supplies on request


Options on request

Connection Flying Leads
Tropicalization
