position indicator / LED / integrated / square
HD16/24 CR

{{requestButtons}}

Characteristics

  • Measured value:

    position

  • Display:

    LED

  • Type:

    integrated

  • Other characteristics:

    square

Description

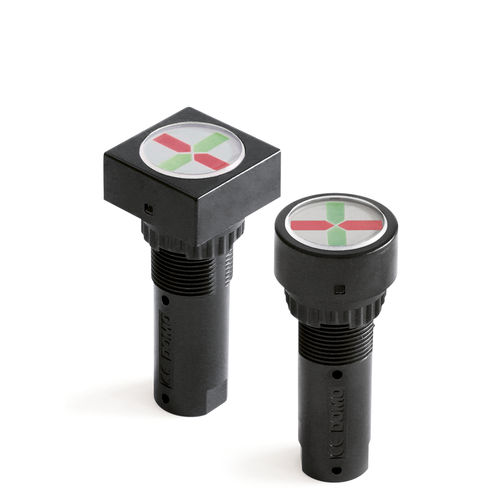

Small semaphore LED indicator with Faston connector.

Ø 16 mm BODY/CUT-OUT
Ø 24 mm ROUND HEAD
24x24 mm SQUARE HEAD

Protruding, flush mounting, round or squared head.
As an alternative to the standard protruding version (type A) HD16/24 CR is available flush mounting (type B), both version can have round head or square head.

Integrated bridge rectifier to operate in both alternating current (VAC) and direct current (Vdc) automatically.
If you prefer, you can choose between the Positive Common or the Negative Common versions.
Up to you.

Integrated Rectifier Bridge to work in Alternating Current (AC) or Direct Current (DC), automatically.
Low power consumption, protection to dust and high water.
With heat or cold, it always works.


Available colors

Red/Green
Green/Yellow
Red/Yellow
White/White


Technical features

Connection Faston 2,8×0,5mm
Integrated Rectifier Bridge
Round head
Square head
Type A protruding
LED consumption 20 mA
Protection degree IP54
Working temperature -20°C +60°C
LED life at AT 25°C >100.000h


Available voltages

Power supply AC/DC 24Vac/dc 48Vac/dc 110-130Vac/dc
Power supply AC 240Vac
Power supply DC 220Vdc
Other power supplies on request


Options on request

Connection Flying Leads
Inbuilt Diode to avoid reverse feeding
Tropicalization
Positive Common
Negative Common
B Type - Flush Mounting square (24x244mm cut)
B Type - Flush Mounting round (Ø24mm cut)
