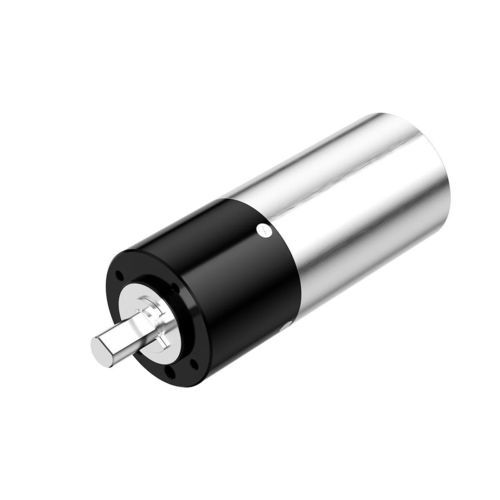

DC gear-motor PG-P36

planetarycoaxial1 - 5 Nm

Product Overview
PG-P36 is a configurable powder metallurgy planetary gear motor designed for compact, application-specific transmission assemblies. It has a 36 mm outer diameter, gearbox length options from 22.1 to 47.9 mm and selectable 1–4 planetary stages. The modular layout allows motor length to be matched to the specified motor for seamless integration.

Key Features

• 36 mm form factor for compact installations
• Gearbox length options: 22.1 / 30.7 / 39.3 / 47.9 mm
• High single-stage transmission efficiency (≈90%) and staged efficiencies for multi-stage variants
• Multiple gear ratios across 1–4 stages for flexible speed/torque selection
• Output shaft: stainless steel; bearings: ball bearings
• Gear materials: iron-based powder metallurgy, plastic, metal
• Case material: metal
• Operating humidity: 20%–85% RH; operating temperature: -30°C to +100°C
• Design and manufacturing customization available

Technical Parameters

• Model: PG-P36
• Outer diameter: 36 mm
• Gearbox length options: 22.1 mm, 30.7 mm, 39.3 mm, 47.9 mm
• Available gear stages: 1, 2, 3, 4
• Gear ratios by stage: 1-stage: 4.6; 2-stage: 16, 24, 36; 3-stage: 56, 96, 144, 216; 4-stage: 256, 384, 576, 864, 1296
• Max. allowable continuous torque (kgf·cm): 1-stage 7.5 / 2-stage 40 / 3-stage 60 / 4-stage 60
• Max. allowable momentary torque (kgf·cm): 1-stage 11 / 2-stage 60 / 3-stage 90 / 4-stage 90
• Efficiency: 1-stage 90% / 2-stage 81% / 3-stage 73% / 4-stage 65%
• Motor length: depends on the specified motor (adaptable)
• Gearbox type: planetary structure

Applications & Integration
The PG-P36 is suited to compact transmission assemblies in industrial automation, robotics, precision actuators, instrumentation and other equipment requiring space-efficient speed/torque conversion. The modular design simplifies mechanical and electrical integration with customer-specified motors.

Customization & Ordering

• Design and manufacturing customization available (motor interface, gearbox length, materials)
• Provide required motor dimensions and performance targets to match motor length
• Contact supplier for technical drawings, lead times and minimum order quantities
