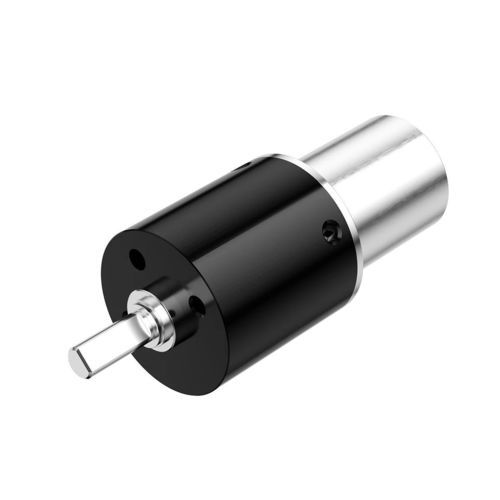

DC gear-motor PG-P16

planetarycoaxial1 - 5 Nm

Product overview
PG-P16 powder metallurgy gear motor is a compact 16 mm planetary transmission solution designed for miniature drive systems needing a combination of torque capacity, compact installation and reliable mechanical transmission. Available in 1–4 gear stages with momentary torque up to 15 kgf·cm. Suitable for integration with a variety of specified motors; customization for design and manufacturing is available.

Key features

• 16 mm powder metallurgy gear motor
• Up to 15 kgf·cm momentary torque
• Planetary gear structure
• 1–4 gear stages

Parameters (table)
PG-P16
Gear stages: 1 | 2 | 3 | 4
Gear ratio: 4,6 | 16,24,36 | 64,96,144,216 | 256,384,576,864,1296
Gear length (mm): 11.5 | 14.8 | 18.1 | 21.4
Max allowable continuous torque (kgf·cm): 2 | 4 | 8 | 10
Max allowable momentary torque (kgf·cm): 3 | 5 | 12 | 15
Efficiency (%): 90 | 81 | 73 | 65
Motor length: depends on the specified motor
Outer diameter: 16 mm
Gearbox type: planetary structure
Output shaft material: stainless steel
Output shaft bearing type: oil-impregnated bearing
Gear material: iron-based powder metallurgy, plastic, metal
Case material: metal
Operating humidity: 20%–85% RH
Operating temperature: -30°C–+100°C
Customization available (design & manufacturing)

Technical specifications

• Model: PG-P16
• Outer diameter: 16 mm
• Gear stages: 1–4
• Gear ratios (by stage): 4,6; 16,24,36; 64,96,144,216; 256,384,576,864,1296
• Gear length (mm) by stage: 11.5 / 14.8 / 18.1 / 21.4
• Max continuous torque (kgf·cm) by stage: 2 / 4 / 8 / 10
• Max momentary torque (kgf·cm) by stage: 3 / 5 / 12 / 15
• Efficiency (%) by stage: 90 / 81 / 73 / 65
• Output shaft: stainless steel
• Output shaft bearing: oil-impregnated bearing
• Gear materials: iron-based powder metallurgy, plastic, metal
• Case material: metal
• Operating humidity: 20%–85% RH
• Operating temperature: -30°C–+100°C
• Customization: design & manufacturing available
