DC gear-motor PG-P32

planetarycoaxialbuilt-in

Product Overview

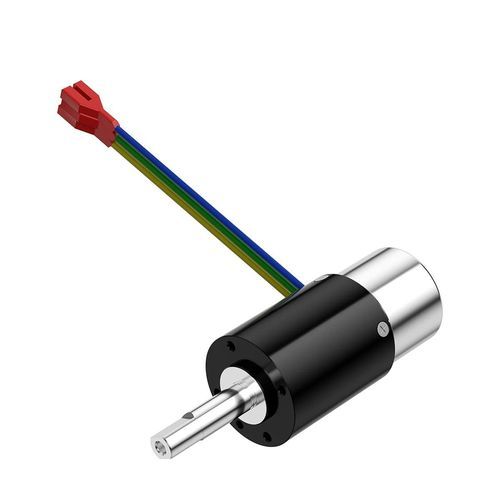

PG-P32 Powder Metallurgy Gear Motor is a 32 mm planetary gear motor designed for compact drive assemblies that require high torque density and reliable mechanical support. It provides up to 80 kgf·cm continuous torque and up to 120 kgf·cm momentary (peak) torque. The output shaft is stainless steel and supported by ball bearings. The integrated motor-and-gearbox design is suitable for robotics, automation equipment and intelligent motion systems.

Key Features

• 120 kgf·cm momentary torque capacity
• 32 mm integrated planetary gear motor design
• Ball-bearing supported output shaft
• Stainless steel output shaft

Parameters (table)
PG-P32
Gear Stages: 1 | 2 | 3 | 4
Gear Ratios: 4.6 | 16, 24, 36 | 64, 96, 144, 216 | 256, 384, 576, 864, 1296
Gear Length (mm): 29.1 | 39.1 | 49.1 | 59.1
Max Allowable Continuous Torque (kgf·cm): 7.5 | 40 | 70 | 80
Max Allowable Momentary Torque (kgf·cm): 11 | 60 | 100 | 120
Efficiency (%): 90 | 81 | 73 | 65
Motor Length: depends on specified motor
Outer Diameter: 32 mm
Gearbox Type: planetary structure
Output Shaft Material: stainless steel
Output Shaft Bearing Type: ball bearings
Gear Material: iron-based powder metallurgy, plastic, metal
Case Material: metal
Operating Humidity: 20%–85% RH
Operating Temperature: -30°C to +100°C
Customization: design and manufacturing customization available

Technical specifications

• Model: PG-P32 (32 mm outer diameter)
• Gearbox type: planetary structure
• Available gear stages: 1, 2, 3, 4
• Available gear ratios (examples): 4.6; 16, 24, 36; 64, 96, 144, 216; 256, 384, 576, 864, 1296
• Gear lengths (mm) by stage: 29.1 (1-stage), 39.1 (2-stage), 49.1 (3-stage), 59.1 (4-stage)
• Max continuous torque: up to 80 kgf·cm (depending on stage)
• Max momentary torque: up to 120 kgf·cm (depending on stage)
• Efficiency range: 90% (1-stage) down to 65% (4-stage)
• Output shaft: stainless steel with ball-bearing support
• Gear materials: iron-based powder metallurgy, plastic, metal
• Case material: metal
• Operating humidity: 20%–85% RH
• Operating temperature: -30°C to +100°C
• Motor length: depends on specified motor (integrated motor-and-gearbox design)
• Customization: design and manufacturing customization available
