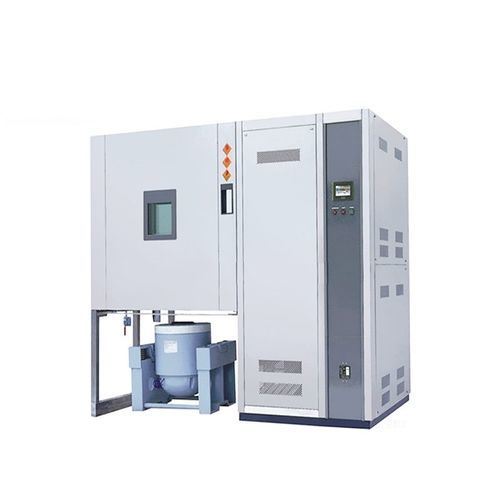

Laboratory test system HJ series

on siteautomatic

1. Structure and materials 2. Inner box material: mirror stainless steel plate (SUS 304 thickness 1.0mm); 3. Outer box material: stainless steel (thickness 1.0mm); 4. Insulation layer design: effectively avoid condensation on the top of the box; 5. Thermal insulation layer: thermal insulation layer (hard Polyurethane foam, 100mm thick); 6. Box door: single-piece door, single window, left open. Flat recessed handle, back button: SUS #304. The double-channel heat insulation is tight and airtight, effectively isolating the heat exchange inside and outside the box; 7. Observation window: three layers of vacuum glass, easy to observe the test sample. 8. Window anti-sweat: electric heating device to prevent moisture condensation; 9. Lighting design: high-brightness window lighting energy-saving lamps, easy to observe the test product; 10. Test hole: The left side of the body is 50mm in diameter, with 1 stainless steel hole cover and 1 silicone plug (optional multiple or 100mm); 11 machine pulleys: easy to move (adjust the placement position) and use with strong bolts (fixed position); 12. Box built-in racks: 2 pieces of stainless steel SUS #304 square punched steel racks and 2 sets of rails (adjust the spacing); Original imported from South Korea, all Chinese LCD 7-inch LCD touch panel, screen dialogue type input data, temperature and humidity can be programmed at the same time, curve display, set value / display value curve.
