Application:

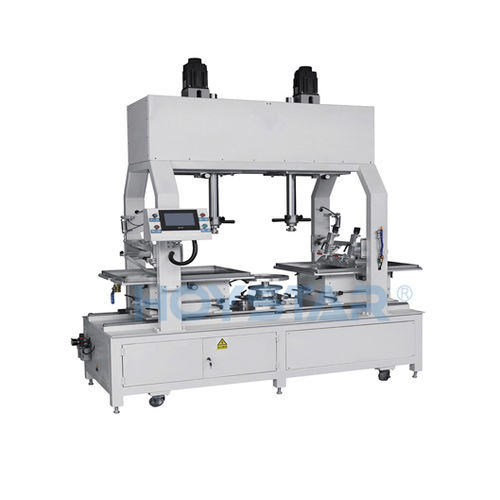

This machine most suitable for printing all kinds of shape ceramic plates bowls, metal pans ,pots ,fry pans ,trays with high printing quality,max printing area can reach 300*300mm, Very powerful machine. it can be printed inside ,outside ,edge and oddly shape.
Function:
1.PLC control and servo motor, make it more stable performance, easier operation, lower noise, pressure uniformity, easier maintenance.
2.Quick print, no matter how complex patterns (2 colors for example), at least can print 400 pcs in one hour, if works 8 hours a day, every day at least can print 3200 pcs, equivalent to 8 staff work about 8-10 days. Thereby, labor cost is saved and work efficiency is improved.
3.The print pattern is clear and accurate, and the repetition error is ± 0.3mm.
4.Apply to smooth or rough surface products, all over the broader scope.
5.Cost lower than screen printing, hand painted and decal for ceramic production (including paint, oil seal).
6.suitable for wide area printing and applicable within the range of 50mm-350mm.
Technical Parameter:
Max.print size: 300*300mm
Max.printing speed:400PCS/Hr
Machine weight:750kgs
Printing colors: 2 colors
Air requirement: 5-7 Bar
Power: 220V 50HZ
Machine size: 2000*650*2200mm
