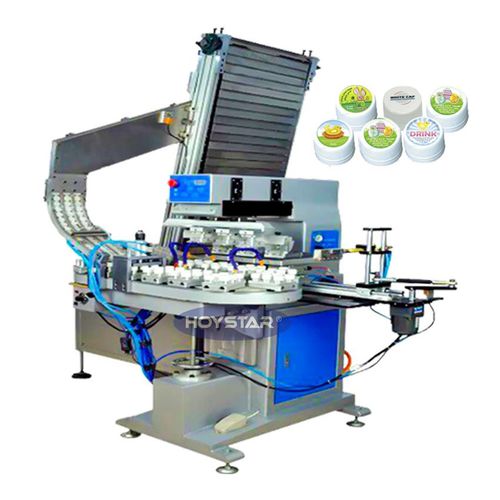

Fully-automatic pad printing machine GW-M4/ST

4-colorfor capswith touchscreen

Full automatic 4 Color bottle cap Pad Printing Machine Application: The automatic four color cap printing machine is special produced for large cap manufacturers. No need person to operation it, it can feeding, printing, uloading automaticlly.Printing four color at one time. Technical parameter: 1) Steel plate: 100*150mm 2) Max printing speed: 8000pcs/hr (if bottle cap diameter is 28mm) 3) Power: 220V 50-60Mhz 4) Printing workstation: 16 pcs 5) Air pressure: 5-7 Bar Function: 1) PCL+Touch screen control. 2) Auto 5-digit counter built-in,and stat. Printing quantity. 3) Airframe adopts coin alloy,and metal coating surface. 4) Worktable,plastic head and ink tray can be adjusted X.Y.Z direction 5) Sucking ink and the pressure of printing pad can be adjusted independently . 6) The distance of scratching ink is adjustable. 7) The speed of all the cylinders have an independent regulator intortum. 8) Taiwan MINDMAN pneumatic component. 9) Each adjustable location has scale logo. 10) When there is no pressure air into ,it has prohibition of plastic head Down function. 11) The machine is running fastly,it is steady and low voice. 12) With flame per-treatment system.
