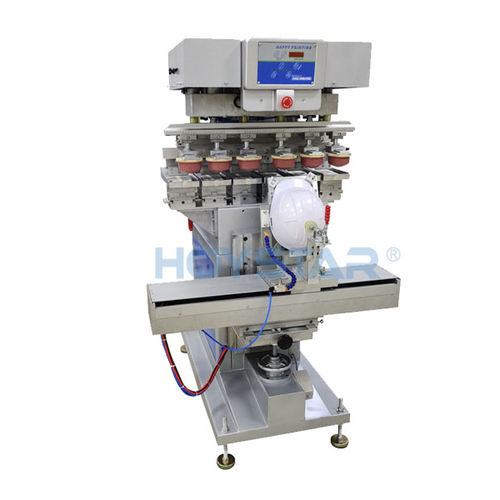

Pad printing machine with open ink cup GW-M6/S-M
six-colorfor hardhats

pad printing machine with open ink cup
pad printing machine with open ink cup
pad printing machine with open ink cup
pad printing machine with open ink cup
pad printing machine with open ink cup
Add to favorites
Compare this product


Characteristics

Type
with open ink cup
Number of colors
six-color
Domain
for hardhats
Printing speed

Max.: 600 p/h

Min.: 500 p/h

Description

Application: this kind machine is specially designed for printing hard hats,it can complete 6 colors after one printing circle.This kind machine is easy to install and operate.Sure,besides hard hats,the machine also can print another products. Technical parameter: 1.Steel plate size:100*200mm 2.Printing speed:1500PCS/Hr 3.Power:220V/110V 50-60MHZ | 1000W 4.Air pressure:5-7BAR 5.Action model option: fully automatic/semi-automatic/ manual/Self-Programming 6.Start-up method:panel/foot switches 7.Scraper working style:Pneumatic mechanical valve drives cylinder up and down 8.Scraper pressure control: pressure regulating valve 9.front/back distance:200MM 10.up/down distance:75MM 11.Max.printing area:80*170MM 12.central distance between Ink tray :127mm 13.repeat prcision:<0.05MM 14.rinting workstation: 18 PCS 15.fixuping clamp method:T-slot table, code pressure compress heavily 16.choosing the material of clamp: Automobil Putty/ Aluminum/bakelite /plastic/steel 17.astic fastness style: by wooden bolt
