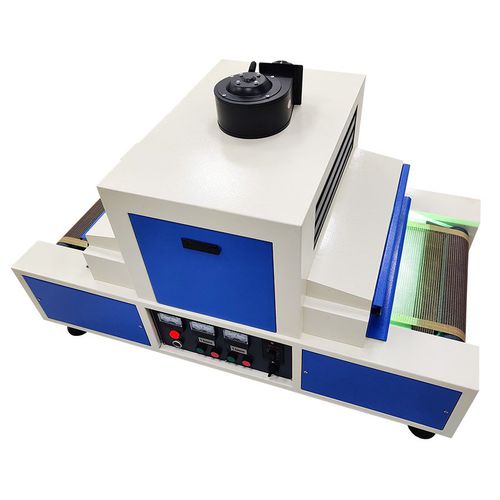

UV curing system GW-UV Series
surfacefor dryingwith belt conveyor

UV curing system
UV curing system
UV curing system
UV curing system
UV curing system
Add to favorites
Compare this product


Characteristics

Options
UV
Autres caractéristiques
surface, for drying, with belt conveyor

Description

Application: It is widely used for curing in cellphone crust, compact disc, thin film switch, electronic and plastic crust UV surface to painting, kinds of UV paint, IMD injection products curing,electronic components, liquid crystal film, terminal gumming,hardware parts,plastic accessories,paper, glass,cellphone parts sticking and LCD etc.All products width within 200mm. Technical Parameter: outside dimension:850*500*850mm Weight: 90KG The length of inlet:170mm The length of output:170mm The width of belt:200mm The height of inlet:232mm The hetght of inlet point:50mm (adjusting is OK) The material of belt:teflon (imported) Light tube power:2.0KW*1pcs (the height of light shine can be adjusted) The width of light shine:200mm The length of shine area:200mm The strength of shine:100W/cm The distance of shine:120-190mm (adjustion) Type of cooling: exhausting by air cooling The value of wave crest:365nm Settling time:about 3 min Convey motor:15W Life 1,000 h (making sure 800h) Decorative style:injection Exhaust fan:20W-1 set, 40W-1 set Gross wattage:2.2KW Convey speed:0-12m/min Power supply:single phase 220v
