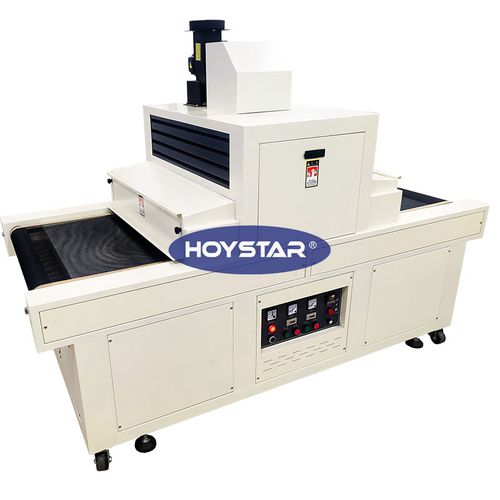

UV curing system GW Series
for dryingwith belt conveyor

UV curing system
UV curing system
UV curing system
UV curing system
UV curing system
Add to favorites
Compare this product


Characteristics

Options
UV
Autres caractéristiques
for drying, with belt conveyor

Description

Conveyor belt uv varnish drying machine Application: Used in the field of post-printing by UV ink. Exposure through UV light onto the film of UV ink to let it dry. Drying to UV ink printed onto paper, PVC etc soft and thin substrates. Connecting with offset printer to cure UV ink. Technical Parameter: 1.Conveyer width:700mm 2.Total wattage:6KW 3.Wind fan wattage:200W/220V 4.Conveyer motor wattage:1000W/1P/220V 5.ConveyEr speed:0~10m/min 6.Speed adjustment:Stepless 7. Outer dimension:2000×800×1500mm 8. Net weight:180KG 9. Lamp wattage:3KW/380v×2pcs; 10. Max height of production:75mm. 11.Power:380 volt,(3 phases) 50 Hz Advantages: 1. Made by high temperature conveyor belt, 2. Famous brand motor drive,stepless speed adjustment. 3. High quality UV lamp to ensure exposure power. 4. Taiwan transformer,startup organ . long life to use 5. With convulsions function to remove quantity of heat in curing case Feature: 1.Choose high quality UV lamp. keep long life. 2.Reflect cover made by resist aging materials. 3.Whole jointing with zinco plate, both portability and firmly. 4.Exposal time auto adjustment and controlling. 5.High vacuum degree, easy to transfer and copy fine lines ; 6. Automatic door of UV lamp shut off and turn on when exposure and finsi ensure long life of UV lamp; 7. High toughness Rubber Layer ensure Film closely cover with frame.
