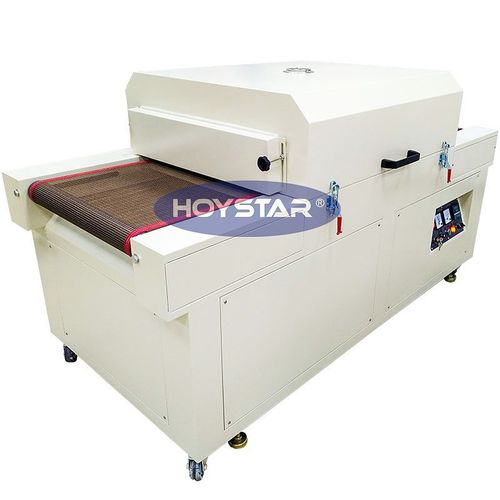

Infrared dryer GW-600Hcontinuousfor the textile industrywith belt conveyor
Add to favorites
Compare this product
Characteristics
- Technology
- infrared
- Batch/continuous
- continuous
- Applications
- for the textile industry
- Other characteristics
- with belt conveyor
Description
Conveyor infrared drying oven 600mm width belt
Application:
This dryer machine with conveyor belt,it is designed for lab and mass production.This conveyor belt system has quiet varying-speed motor,when the dryer is various loads, speed -adjusting driver and the speed of conveyor are Uniform,the height between belt and lamps can be adjusted,it is suitable for kinds of items which have different size.
It is suitable for printing,painting, hot-setting adhesive, ink jetting,and T-shirt printing etc.
Technical parameter:
1) Conveyor belt width： 600mm
2) Inlet length： 500mm
3) Outlet length： 500mm
4) Chamber length： 1000mm
5) Total length of conveyor belt： 2000mm
6)Conveyor belt material: Teflon
7)Conveyor belt speed: 1-10M/mitues
8)Infrared Lamps: 800w*6pcs
9)Temperature: 0-180 degree
10)Machine size: 2000*900*1150mm
11)Machine weight: 200kg
12) Power: 220V
