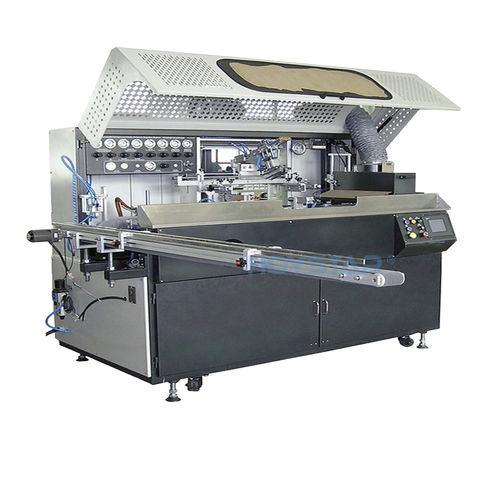

Automatic screen printer GW-1A-UVfully-automaticmonochromefor glass bottles
Add to favorites
Compare this product
Characteristics
- Control
- automatic, fully-automatic
- Number of colors
- monochrome
- Applications
- for glass bottles, for plastic bottles, for plastic tubes
- Other characteristics
- pneumatic, high-accuracy, high-speed, rotary, for cylindrical products, with UV curing system
- Printing speed
3,600 p/h
Description
Full Automatic Cylindrical Screen Printing Machine For Plastic Water Bottles
Application:
It is suitable for printing glass/plastic bottles/tube,such as cosmetic glass bottles,plastic water bottles,nail glass bottles,plastic tube....etc
Main function:
⊕ Auto feeder
⊕ Automatic loading direction-selectionsystem
⊕ Auto flame treatment for container surface
⊕ Electrodeless variable-speed motor syst
⊕ Adjustable mechanical synchronous transfer system
⊕ Auto pre-allocation system
⊕ No printing while no bottle system
⊕ UV-coating system
Technical Parameter:
⊕ Round printing diameter:25mm~100mm
⊕ Round printing height:60mm~280mm
⊕ Oval printing diameter:R35mm~R180mm
⊕ Oval printing height:60mm~280mm
⊕ Max printing speed:3600Pcs/Hour
⊕ Power supply:AC220V 1 PAHSE/AC380V 3Phase 50Hz/60Hz
⊕ Rated power: 7KW 20A
⊕ Air pressure:5~8bar
⊕ Machine dimension:(L2000mm*W1200mm*H1750mm)
⊕ Machine weight:1600kg
VIDEO
