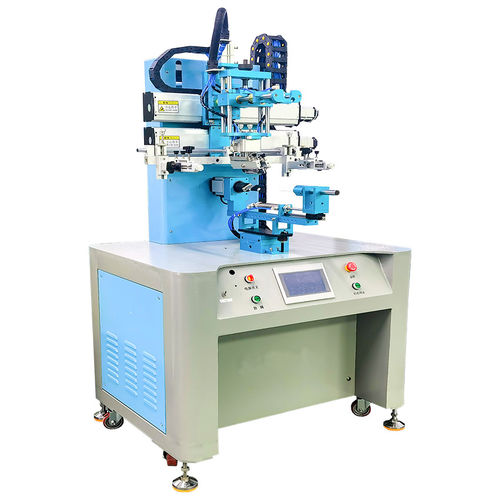

Automatic screen printing machine GW-2M-CNC

colorfor plastic bottlesdigital

Application: This screen printing machine is a medium size curved screen printer, it can print kinds of products which surface is round,such as bottles,plastic tubes,cups etc. It print fastly with steady quality and lower voice. it is with color-registration eye,so it can do color-registration easily and high precise . It is suitable for printing cosmetics, containers, food packages and other curved products surface. Function: 1) Mainly produce by Optoocular counterposition system/optical sensor, it is from German brand 2) PLC control system,servo motor.so that these feature will make color register more precision. 3) It can print hard bottle or soft tube.These bottle can color register without fixed point of bottle bottom. 4) With air injection function,like this,it can print the products which material is soft 5) It is with color-registration eye,so it can do color-registration easily and high precise 6) Accuracy or tolerance of the registry is 0.05mm. Technical parameter: 1) Max.printing speed: 1200PCS/Hr 2) Power: 220V 3) Air pressure: 5-7bar 4) Max.printing area: 260mm(the length of circumference and cambered surface) * 200mm (width) 5) Max printing diameter : ￠100mm 6) Max length of products: 250mm 7) With CNC color-registration system 8) Can print products of different shapes, such as oval shape, circular, square bottles, triangles, and square flat products
