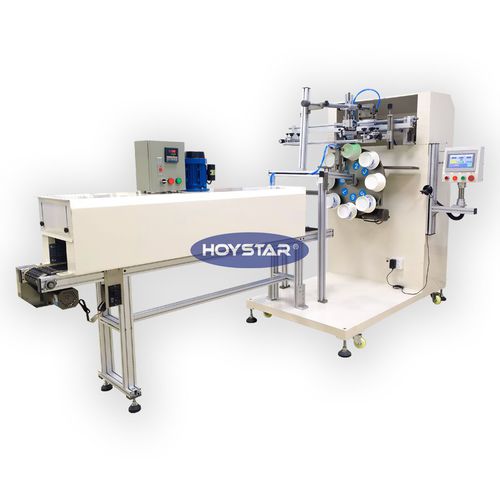

Automatic screen printer GW-2A-S

paper cupwith touchscreen

Application: PET plastic cup automatic screen printing machine with auto unloading for plastic &paper milk tea cups/coffee cup,paper bowl screen printing machine This kind screen printing machine is specially designed for printing the Disposable Cup, it is 3/4 automatic machine,manual loading---auto printing-----auto unloading---IR drying Feature: 1) Manual feeding，With laser point alignment device 2) Locating automatically to keep printing precision 3) No product without printing system, keep printing stable 4) High and strong vacuum system, keep printing precision 5) PLC and touching screen control system. Digital control system,can set parameter randomly,operate easily with big function 6) The four angle of screen frame holder can be adjusted, keep the balance between screen frame and worktable, also make sure the layer of printing ink is even 7) Printing angle, printing pressure and screen distance are easy to set. The change of squeegee and flood bar is controlled by precision guide, keeping the vertical precision, working smoothly 8) With emergency switch to keep safe and stable 9) Locating several workstations by Taiwan precision rotary locating with stable, fast, improving efficiency 10) The loading system is rotary type. like this,it can save time Technical parameter: 1. Max.printing speed: 1500pcs/Hr 2. Power: 220V 50-60MHZ 3. Air pressure: 5-7bar 4. Loading mode: Manual 5. Unloading mode: Automatic 6. Drive mode of rotary table: Electric 7. Transeversa driving style: Pneumatic 8. Transeversa stroke: 400mm 9. Max printing diameter : ￠130mm 10. Max length of products: 200mm 11. IR drying system: 500W/PC*8PCS(IR lamp)
