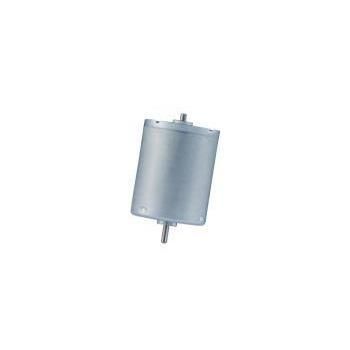

Brushless motor RB-2430-9C series

BLDC6 V12 V

Product Overview
RB-2430-9C is a 24 mm-class Brushless DC Motor (BLDC) with an extended 30.8 mm body and external-rotor construction. The longer magnetic circuit and increased winding space provide higher torque density (series max up to 76 g·cm) while maintaining a compact footprint. Suitable for precision, high-load small drives in medical and industrial equipment.

Key Facts for Engineering Buyers

• Product category: Brushless DC Motors (BLDC)
• Model: RB-2430-9C (variants N-01 to N-04)
• Brand / manufacturer: KWC Motor, Dongguan KWC Machinery Co., Ltd.
• Typical applications: surgical power tools, medical centrifuges, pumps, electric valves, vacuum pumps, personal-care devices

Specification Signals

• Diameter: 24 mm class
• Body length (extended): 30.8 mm
• External rotor (high inertia)
• Maximum torque (series): up to 76 g·cm

Customization and Sourcing Notes
OEM/ODM customization available for operating voltage, nominal speed, torque tuning, shaft type/length, mounting pattern, lead wires/connector options, gearbox/encoder preassembly, and EMC/noise targets. Final pricing and lead times require confirmation of application, electrical/mechanical specifications, quantity and required tests.

Target Applications & Solutions

• Medical devices: surgical power tools, medical centrifuges, electronic blood pressure monitors — brushless design reduces EMI and improves reliability.
• Fluid control & small drive systems: electric valves, vacuum pumps, air/water pumps, massage and personal-care devices — stable output under variable loads.

Technical Specifications
Data source: KWC RB-2430-9C datasheet. Deep customization available.
Model | Operating Voltage Range | Nominal Voltage | No-Load Speed | Max Efficiency Speed | Max Efficiency Torque | Output (at Max Efficiency)
RB-2430-9C-N-01 | 5.0V - 9.0V | 6.0V | 4800 rpm | 3694 rpm | 34.5 g·cm | 1.31 W
RB-2430-9C-N-02 | 6.0V - 12.0V | 9.0V | 5300 rpm | 4184 rpm | 47.8 g·cm | 2.05 W
RB-2430-9C-N-03 | 9.0V - 16.0V | 12.0V | 8010 rpm | 6800 rpm | 66.7 g·cm | 4.40 W
RB-2430-9C-N-04 | 19.0V - 26.0V | 24.0V | 7800 rpm | 6280 rpm | 76.0 g·cm | 4.90 W

Design Notes
External-rotor (outer rotor) design yields higher moment of inertia for smoother speed stability and improved torque under fluctuating loads. Check thermal limits and duty cycle for continuous high-load operation.

Quality & Production Highlights

• Factory-direct production with in-house tooling and automated assembly.
• 100% noise and current testing; RoHS/REACH compliance.
• Flexible sampling, small-batch and volume production capabilities.

Characteristics / Technical Summary

• Model: RB-2430-9C series
• Brand: KWC Motor (Dongguan KWC Machinery Co., Ltd.)
• Motor type: Brushless DC Motor (BLDC), external rotor
• Diameter: ~24 mm; Body length: 30.8 mm
• Series max torque: up to 76 g·cm
• Available nominal voltages and speeds: see technical specifications
• Typical applications: surgical tools, medical centrifuges, pumps, electric valves, vacuum pumps, personal-care devices
• Customization: voltage range, speed, torque, shaft form/length, mounting pattern, gearbox/encoder integration, lead wires/terminals, EMC/noise tuning
