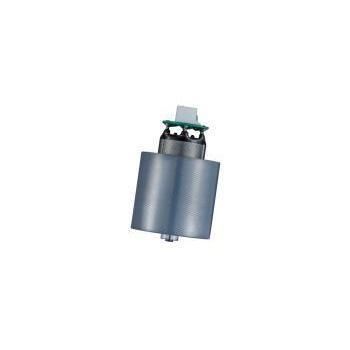

Brushless motor RB-29-62 series

BLDC100 V12 V

Product overview
The RB-29-62 is a 29 mm class brushless DC motor (BLDC) engineered for high-speed air-moving applications. Typical capabilities include nominal speeds around 110,000 rpm (variants up to 120,000 rpm), a compact 28.8–29 mm effective diameter and an 11‑blade aluminum alloy impeller optimized for airflow and pressure. Available in configurable voltage ranges with deep OEM/ODM customization options.

Key facts for engineering buyers

• Product family: Brushless DC Motor (BLDC)
• Manufacturer: KWC Motor (Dongguan KWC Machinery Co., Ltd.)
• Typical use cases: professional salon hairdryers, industrial cooling, high-power portable fans, high-performance air-moving equipment
• Customization: voltage, speed, torque, shaft design, impeller assembly, mounting interfaces, connectors, PCBA and housings

Specification highlights

• Diameter: 29 mm (nominal 28.8 mm)
• Impeller: standard 11‑blade aluminum alloy (customizable)
• Speed: nominal 110,000 rpm (series variants up to 120,000 rpm ±5,000 rpm)
• Power: up to 150 W (N-03 model)
• Voltage ranges: configurable (examples: 9–16 V / 12 V, 90–120 V / 100 V, 180–260 V / 220 V)

Customization and sourcing notes
OEM/ODM customization is supported across electrical and mechanical domains: voltage and speed ranges, required torque, shaft length and profile, impeller design and assembly, mounting hole patterns, cable/connector options, gearbox integration, and optional pre-installed driver board (PCBA) or housing. Final pricing and lead times depend on specified requirements, quantities and customization scope.

Core applications & solutions

• Professional salon-grade hairdryers (100 V / 220 V variants): high-power direct-drive versions with 11-blade impeller for strong instantaneous airflow.
• Industrial cooling & high-power portable fans (12 V variants): low-voltage options (up to 150 W) for powerful cooling of equipment and battery-powered fans.

Technical specifications (examples)
*Data source: KWC RB-29-62 specification sheet.
RB-29-62-N-01 — Operating range 90–120 V — Nominal 100 V — Rated speed 110000 ±5000 rpm — Current ~2 A — Output 100 W
RB-29-62-N-02 — Operating range 180–260 V — Nominal 220 V — Rated speed 110000 ±5000 rpm — Current ~1.5 A — Output 100 W
RB-29-62-N-03 — Operating range 9–16 V — Nominal 12 V — Rated speed 120000 ±5000 rpm — Current ~12 A — Output 150 W

Comparison highlights
The RB-29-62 offers a larger effective diameter (~28.8 mm) and an 11‑blade impeller, delivering higher airflow and pressure versus typical 25 mm high-speed motors; maximum power reaches 150 W on selected variants compared with commonly <120 W on smaller motors.

Characteristics / additional notes

• Dynamic balance testing to G0.4 grade; RoHS/REACH compliance available
• Sample lead times and mass-production capacity depend on configuration
• Provide load profile, operating temperature and mounting constraints when requesting quotations or custom designs
