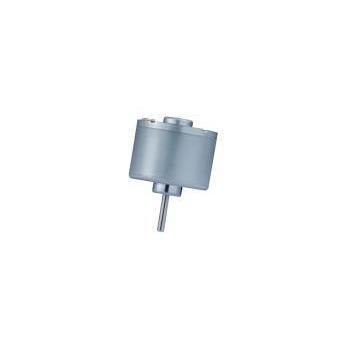

Brushless motor RB-3626-68 series

DCBLDC12 V

Product Overview
RB-3626-68 is an outer-rotor Brushless DC Motor (BLDC) designed for compact applications requiring high torque density and low vibration. Nominal body diameter is 36 mm with a flat 26 mm body; maximum efficiency torque reaches up to 170.8 g·cm depending on model.

Key Facts for Engineering Buyers

• Product category: Brushless DC Motors (BLDC)
• Motor family: Outer-rotor BLDC
• Brand / manufacturer: KWC Motor, Dongguan KWC Machinery Co., Ltd.
• Typical applications: ATMs, vending machines, office equipment, pumps, personal-care devices

Specification Signals

• Diameter: 36 mm
• Body length: 26 mm
• Torque (max efficiency): up to 170.8 g·cm (model dependent)

Target Applications & Solutions
With an outer-rotor design and compact profile, RB-3626-68 offers higher rotational inertia and torque density than similar-size inner-rotor units, enabling stable, low-noise drive in tight spaces. Typical integrations include:

• Financial & Office Automation: ATMs, vending machines, printers, projectors — precise motion in compact housings.
• Medical & Personal Care: Micro pumps, electric valves, massagers, electric shavers — reduced vibration and noise.

Technical Specifications (models and performance)
Model | Operating Voltage Range | Nominal Voltage | No-Load Speed | Max Efficiency Speed | Max Efficiency Torque | Output (at Max Efficiency)
RB-3626-68-N-01 | 9.0V - 14.0V | 12.0V | 2950 rpm | 2251 rpm | 136.9 g·cm | 3.2 W
RB-3626-68-N-02 | 19.0V - 26.0V | 24.0V | 4680 rpm | 3562 rpm | 153.0 g·cm | 5.6 W
RB-3626-68-N-03 | 19.0V - 26.0V | 24.0V | 11900 rpm | 9065 rpm | 170.8 g·cm | 15.9 W
RB-3626-68-N-04 | 8.0V - 26.0V | 9.0V | 2800 rpm | 1900 rpm | 137.7 g·cm | 2.69 W

Customization and Integration Notes

• OEM/ODM options: voltage ranges, speed/torque tuning, shaft design (D-shaft, threaded), length and mounting patterns.
• Pre-assembly options: gears, worm drives, encoders, custom lead wires and connectors.
• EMC/noise targets, encoder or control-board integration available per project requirements.

Comparison (selected items)
Comparison Item | KWC RB-3626-68 (Outer Rotor) | Standard 36mm Inner-Rotor Motor
Torque Smoothness | Excellent (high inertia) | Standard
Torque Output | Strong (Max 170.8 g·cm) | Limited by rotor configuration
EMI | Low (no sparking) | Higher for brushed types
Body Length | 26 mm (flat design) | Typically longer

Purchasing & Manufacturing Notes

• MOQ & sampling: Flexible; samples available (1–5 pcs); pilot runs typically 100–500 pcs; mass production recommended from ~1,000 pcs.
• Packaging: Industrial blister trays + reinforced cartons; palletized export packing available.
• Quality & testing: 100% inspection including noise and current tests; RoHS/REACH compliance. Typical sample lead time 7–14 days.

Characteristics / Technical specifications

• Model family: RB-3626-68
• Motor type: Outer-rotor Brushless DC Motor (BLDC)
• Diameter: 36 mm
• Body length: 26 mm
• Maximum reported torque: up to 170.8 g·cm (model dependent)
• Operating voltage ranges: 8.0V–26.0V (varies by sub-model)
• Nominal voltages: 9.0V, 12.0V, 24.0V
• Speed range examples: no-load ~2,800–11,900 rpm depending on sub-model
• Output (at max efficiency) examples: ~2.69 W–15.9 W depending on sub-model
• Customization scope: voltage, speed, torque, shaft length/type, mounting patterns, gearbox/encoder/pre-assembly, EMC/noise measures
