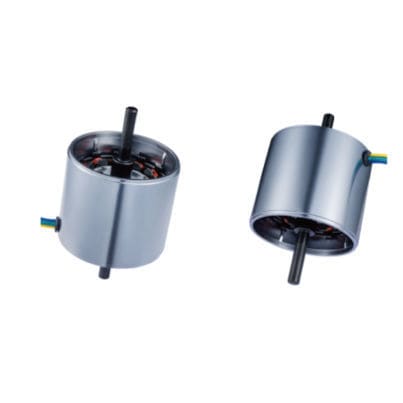

Brushless motor RB-8530-C8 series

BLDC6 V12 V

Product Overview
RB-8530-C8 is a Brushless DC Motor (BLDC) from KWC Motor in the 85 mm class with an external-rotor option. It delivers high continuous torque (rated up to 1.02 N·m / 10,200 g·cm) and peak power in the 200–210 W range. Voltage and performance can be customized across approximately 6 V–40 V. The motor is designed for low-speed, high-torque applications requiring quiet, stable operation and industrial-grade durability.

Key Facts for Engineering Buyers

• Product category: Brushless DC Motors (BLDC)
• Motor family: External-rotor BLDC, 85 mm class
• Brand / manufacturer: KWC Motor
• Typical applications: high-flow oxygen concentrators, medical equipment, service robots, pumps and automation drives

Specification Signals

• Diameter: 85 mm (external rotor dimension also referenced as 92.5 mm)
• Body length: ~75 mm
• Rated torque: up to 1.02 N·m (10,200 g·cm)
• Stall torque: up to ~11 N·m (application-dependent)
• Output power: ~200 W class (model variants list 205–210 W)
• Voltage range: customizable ~6 V – 40 V

Target Applications & Solutions

• Medical Oxygen Concentrators & Respiratory Systems: Designed for compressor pump heads in high‑flow medical oxygen concentrators. Low-speed (~2300 rpm) high-torque behaviour supports smooth, quiet pump operation and long service life; suitable for medical device integration and lifecycle requirements.
• Robotics & Industrial Drives: Applied in service-robot wheel hubs, automatic doors, conveyor drives and other systems requiring high starting torque. High stall torque helps overcome initial load during acceleration and engagement.

Technical Specifications (summary table)
Model | Operating Voltage Range | Nominal Voltage | No-Load Speed | Speed @ Max Efficiency | Torque @ Max Efficiency | Output Power
RB-8530-C8-N-01 | 12.0V – 26.0V | 12.0V | 2300 rpm | 1850 rpm | 10,200 g·cm | 205 W
RB-8530-C8-N-02 | 12.0V – 26.0V | 24.0V | 2400 rpm | 1900 rpm | 10,200 g·cm | 210 W
RB-8530-C8-N-03 | 24.0V – 40.0V | 36.0V | 2300 rpm | 1850 rpm | 10,200 g·cm | 210 W
RB-8530-C8-N-04 | 6.0V – 26.0V | 18.0V | 2300 rpm | 1850 rpm | 10,200 g·cm | 205 W

Customization Notes
Shaft length and profile, performance tuning (voltage, speed, torque), EMC countermeasures, connector and cable options, gearbox integration, encoder or sensor fitment, and noise/EMC targets can be customized per application. Final pricing and lead time are provided after specification, quantity and customization confirmation.

Purchasing FAQ (excerpt)

• MOQ: Flexible — samples accepted (1–5 pcs); pilot orders: 100–500 pcs; recommended mass-production start: ~1,000 pcs.
• Packaging: Industrial blister tray with reinforced outer cartons for shock and ESD protection; palletized export packing available.

Characteristics / technical specifications

• Model designation: RB-8530-C8 (series)
• Motor type: Brushless DC Motor (BLDC), external-rotor design
• Reported diameters: 85 mm (spec list) and 92.5 mm (external rotor)
• Body length: ~75 mm
• Rated torque: ~1.02 N·m (10,200 g·cm)
• Stall torque: up to ~11 N·m (varies with variant/application)
• Output / maximum power: ~200 W class (205–210 W depending on variant)
• Voltage range (customizable): 6 V – 40 V
• No-load speed (typical): ~2300–2400 rpm
• Speed at max efficiency (typical): ~1850–1900 rpm
• Applications: compressor pump heads for high-flow oxygen concentrators, medical devices, service robots, automatic doors, conveyors
• OEM/ODM support: shaft options (D-shaft/threaded), mounting patterns, optional gears/encoders/wire harness/terminals, EMC/noise targets
• Quality: 100% inspection, noise and current tested; RoHS / REACH compliance noted
