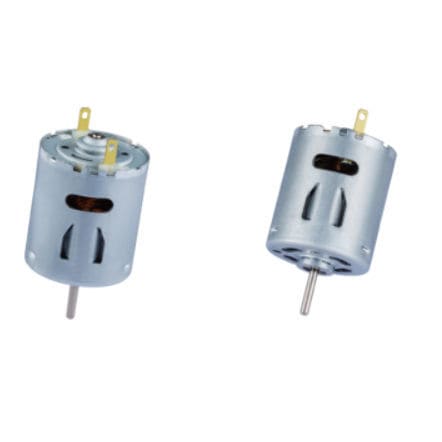

DC motor RS-2833ST series

brushed6 V48 V

RS-2833ST Product Overview
RS-2833ST is a 28 mm brushed DC motor from KWC Motor, designed for applications requiring high speed and compact size. Common uses include automotive wash pumps, high-speed hair dryers, vacuum cleaners and smart robotic vacuum cleaners. The series supports a wide voltage range (6V–48V) and variants reaching up to 25,000 rpm and 17.5 W output.

Key Facts for Engineering Buyers

• Product category: Brushed DC Motors
• Motor family: Brushed DC Motor
• Brand / manufacturer: KWC Motor, Dongguan KWC Machinery Co., Ltd.
• Typical applications: Automotive wash pumps, high-speed hair dryers, vacuum cleaners, smart robotic vacuum cleaners

Specification Signals

• Diameter: 28 mm
• Voltage: 6V - 48V
• Maximum Speed: 25,000 rpm
• Output Power: up to 17.5 W

Customization and Sourcing Notes
OEM/ODM customization is available for voltage, speed, torque, shaft design (dual shafts, knurled shaft), cable or connector options, gearbox integration, control options, wiring (pre-soldered leads or terminal connectors) and EMC/EMI suppression (varistors, capacitors). Shaft diameter and motor length can be adapted; example shaft diameter: 2.3 mm, example motor length: 32.6 mm.

Target Applications & Solutions
Designed for high-speed and sustained operation, the ST series features an optimized magnetic circuit and winding design with ventilated cooling suitable for continuous duty. Typical use cases:

• Automotive washer pumps & outdoor equipment: Suitable for washer pumps, inflators and electric mobility products. Stable operation at 36V–48V with starting torque up to 500 g·cm for pump and drive mechanisms.
• High-speed hair dryers & vacuum cleaners: Used in household hair dryers, handheld vacuum cleaners and robotic vacuum cleaners. Speeds up to 25,000 rpm deliver high airflow while vented housings reduce heat buildup during high-speed operation.

RS-2833ST Technical Specifications (table)
Model | Operating Voltage | Nominal Voltage | No-load Speed | Speed @ Max. Efficiency | Output Power | Stall Torque
RS-2833ST-2585 | 6.0V – 12.0V | 6.0V | 10,500 rpm | 8,555 rpm | 5.17 W | 318 g·cm
RS-2833ST-3166 | 6.0V – 14.4V | 12.0V | 25,000 rpm | 20,929 rpm | 17.5 W | 500 g·cm
RS-2833ST-16120 | 9.0V – 16.0V | 12.0V | 8,200 rpm | 6,378 rpm | 3.35 W | 230 g·cm
RS-2833ST-13150 | 24.0V – 48.0V | 36.0V | 18,500 rpm | 15,072 rpm | 14.32 W | 500 g·cm

Additional Technical Notes
Deep customization is available for high-voltage variants (24V–48V), high-speed tuning and EMC/EMI suppression. Example mechanical references: shaft diameter 2.3 mm; motor length 32.6 mm. Performance parameters, shaft length and EMC countermeasures can be adjusted on request.

Features / Technical Summary

• Model name: RS-2833ST
• Diameter: 28 mm
• Supported voltage range: 6V – 48V (model-dependent)
• Maximum no-load speed (highest variant): 25,000 rpm
• Maximum output power (highest variant): 17.5 W
• Stall/starting torque examples: up to 500 g·cm (model-dependent)
• Typical nominal voltages by variant: 6.0V, 12.0V, 36.0V
• Variants listed: RS-2833ST-2585, RS-2833ST-3166, RS-2833ST-16120, RS-2833ST-13150
• Shaft diameter (example): 2.3 mm; motor length (example): 32.6 mm
• Cooling: ventilated housing for reduced heat buildup at high speed
• Customization: OEM/ODM options for voltage, speed, torque, shaft and wiring, gearbox integration, EMC/EMI suppression
