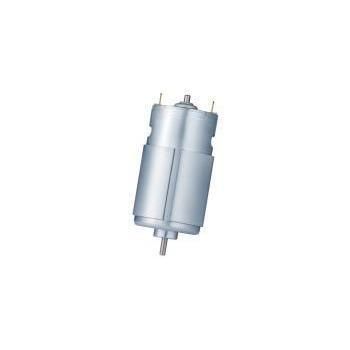

DC motor RS-3657CS series

brushed100 V...240 V

RS-3657CS Product Overview
RS-3657CS is a 36 mm class brushed DC motor with a 57 mm body length. It is a high-voltage DC (HVDC) series designed for direct-rectified 100V–240V DC supply and common in professional hairdryers, domestic sewing machines, handheld blenders and similar appliances. Typical performance reaches up to 18,200 rpm and up to 34 W depending on variant.

Key Facts for Engineering Buyers

• Product category: Brushed DC Motors
• Motor family: Brushed DC Motor
• Brand / manufacturer: KWC Motor, Dongguan KWC Machinery Co., Ltd.
• Typical applications: professional hairdryers, domestic sewing machines, handheld blenders, vacuum cleaners

Specification Signals

• Diameter: 36 mm
• Body length: 57 mm
• Voltage: 100V–240V (HVDC, variant dependent)
• Speed: up to 18,200 rpm (model dependent)
• Output Power: up to 34 W (model dependent)

Customization and Sourcing Notes
KWC Motor offers OEM/ODM customization for winding (voltage), speed, torque, shaft design, cables/connectors, gearbox integration and EMC/noise targets. Shaft diameter is 3.175 mm and motor body length is 57.0 mm for this series. Winding parameters can be adapted to local mains (110V/220V/230V). Quotation requires confirmed application, specification, quantity and customization details.

Core Applications & Solutions

• Professional Hair Dryers & Heat Tools: Models such as RS-3657CS-10180 reach up to 18,200 rpm and ~30 W; extended body length improves rotational smoothness and reduces handle vibration.
• Sewing Machines & Kitchen Appliances: HVDC variants provide strong starting torque and, with the 57 mm rotor, handle heavier loads like thick fabrics or high-viscosity blending.

Technical Specifications (datasheet summary)
Data source: KWC RS-3657CS datasheet. This series supports HVDC operation with customization across 100V–240V. Observe creepage/clearance and insulation class when selecting.

Model table
Model | Operating Voltage Range | Nominal Voltage | No-Load Speed | Speed at Max Efficiency | Output Power | Stall Torque
RS-3657CS-1583 | 100V – 120V | 100V | 14,500 rpm | 11,730 rpm | 21.08 W | 1,125 g·cm
RS-36570S-13100 | 100V – 120V | 120V | 16,200 rpm | 13,590 rpm | 24.02 W | 1,519 g·cm
RS-3657CS-06450 | 220V – 240V | 220V | 5,830 rpm | 4,985 rpm | 8.6 W | 1,156 g·cm
RS-3657CS-10180 | 100V – 230V | 230V | 18,200 rpm | 15,640 rpm | 18.43 W | 1,335 g·cm

Notes
This is a DC motor family requiring a rectifier bridge to convert AC mains to DC for direct drive. High-voltage variants typically use carbon brushes with expected service life around 200–500 hours depending on load and duty cycle. Check thermal conditions and duty cycle for intended application.

caractéristiques / spécifications techniques

• Model: RS-3657CS
• Diameter: 36 mm
• Body length: 57 mm
• Voltage range: 100V–240V (HVDC, variant dependent)
• No-load speed: up to 18,200 rpm (model dependent)
• Output power: up to 34 W (model dependent)
• Stall torque: ~1,125–1,519 g·cm depending on model
• Shaft diameter: 3.175 mm
• Typical applications: professional hairdryers, domestic sewing machines, handheld blenders, vacuum cleaners
• Customization: winding, shaft, connectors, gearbox integration, EMC/noise targets
