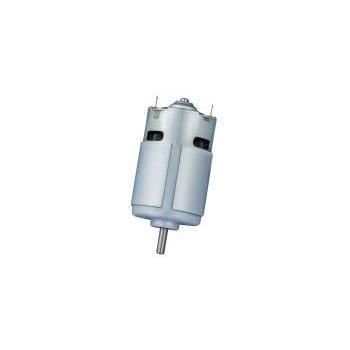

DC motor RS-4266DT series

brushed12 V36 V

RS-4266DT Product Overview
RS-4266DT is a 42 mm class brushed DC motor with an extended 66 mm body length. The longer can increases rotor length and magnetic working area compared with the RS-4260 platform, enabling higher continuous torque and greater power density. Typical marketed support covers 12–36 V with deep OEM/ODM customization available.

Key Facts for Engineering Buyers

• Product category: Brushed DC Motors
• Motor family: Brushed DC Motor, 42 mm class
• Brand / manufacturer: KWC Motor, Dongguan KWC Machinery Co., Ltd.
• Typical applications: heavy-duty electric blinds, roller shutters, power drills, electric screwdrivers, automation equipment

Specification Signals

• Diameter (OD): 42.0 mm (OD noted 42.2 mm)
• Body length (can): 66.0 mm
• Voltage: typical marketed support 12–36 V (model-dependent; some models 6–36 V)
• Output power: up to ~85 W (model dependent)

Customization and Sourcing Notes
KWC Motor offers OEM/ODM options for winding, voltage range, speed/torque profiles, shaft design (including D‑cut and knurled), pre-soldered leads or connectors, gearbox integration, and EMC/EMI suppression. Price and lead time depend on application details, specifications, quantity and customization requirements.

Target Applications & Solutions
With a 66 mm can, RS-4266DT provides higher torque reserve than shorter 42 mm variants. It suits applications requiring low-speed high-torque output or higher power density in limited diameter envelopes, such as smart-home actuators and handheld or bench power tools.

Heavy-Duty Blinds & Curtains
Suitable for large motorized blinds, roller shutters and window actuators where low-speed, high-torque operation is needed. Use with an appropriate gearbox to increase lifting capacity and stabilize low-speed performance.

Power Tools & Automation Equipment
Applicable to handheld drills, electric screwdrivers and conveyor or automation drives. Selected variants deliver up to ~85 W and stall torque values suitable for intensive duty cycles; confirm thermal and duty-cycle limits per model.

RS-4266DT Technical Specifications
Data source: KWC RS-4266DT datasheet.
RS-42663DT-5080 | 12.0V–18.0V | Nominal 12.0V | No-load 5,000 rpm | Speed @ max eff. 4,279 rpm | Output 26.4 W | Stall torque 4167 g·cm
RS-42663DT-31150 | 12.0V–36.0V | Nominal 24.0V | No-load 5,300 rpm | Speed @ max eff. 4,446 rpm | Output 19.5 W | Stall torque 2650 g·cm
RS-42665DT-8014 | 6.0V–18.0V | Nominal 12.0V | No-load 13,500 rpm | Speed @ max eff. 11,832 rpm | Output 85.3 W | Stall torque 5684 g·cm
RS-42665DT-29100 | 24.0V–36.0V | Nominal 24.0V | No-load 4,000 rpm | Speed @ max eff. 3,305 rpm | Output 16.5 W | Stall torque 2800 g·cm

Customization notes
OD: 42.2 mm; can length: 66.0 mm; standard shaft diameter: 5.0 mm. D-cut shafts, knurled shafts, modified shaft lengths, EMC components, connectors and application-specific winding options are available on request.

Features / technical summary

• Model / Series: RS-4266DT
• Representative diameter: 42 mm class
• Extended can length: 66.0 mm
• Standard shaft: 5.0 mm (options: D‑cut, knurled, custom)
• Typical voltage range: 6–36 V (model-dependent; marketed support 12–36 V)
• Peak/typical power: up to ~85 W (variant-dependent)
• Stall torque examples: up to ~5.6 kg·cm (5684 g·cm in listed variant)
• Applications: heavy-duty blinds, roller shutters, smart actuators, power tools, automation equipment
• Customization: windings, shaft, leads/connectors, gearbox integration, EMC/EMI suppression
